VKDIC/SHX - DUAL BLOCK® 2-WAY BALL VALVE

DUAL BLOCK® 2-way ball valve with female ends for solvent welding, metric series, handle block and STAINLESS steel threaded inserts
FIP has developed a VKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design. VKD is a True Union ball valve that meets the most stringent needs$required by industrial applications.

Další charakteristika:

  • Ergonomic HIPVC handle equipped with removable tool to adjust the ball seat carrier.
  • Handle lock 0°- 90° SHKD (available as an accessory) ergonomically operable during service and padlockable
  • Robust integrated bracket for valve anchoring, for easy and quick automation even after valve installation on the system via the Power Quick module (optional)
  • DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
  • Machined high surface finish ball that guarantees a smooth operation and increased reliability
Zpět Produktový list

EPDM

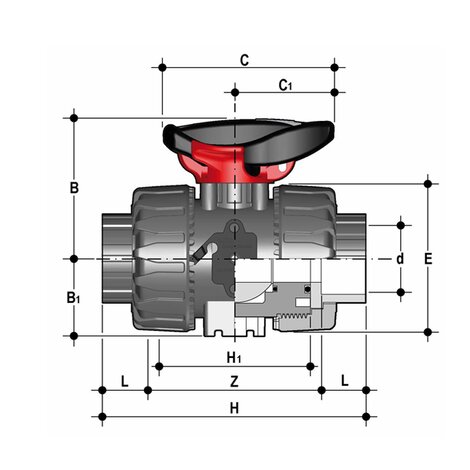

Objednací číslo product.detail.attribute.d DN product.detail.attribute.PN product.detail.attribute.B product.detail.attribute.B[5:1] product.detail.attribute.C product.detail.attribute.C[5:1] product.detail.attribute.E product.detail.attribute.H product.detail.attribute.H[5:1] L Z product.detail.attribute.g
VKDICSHX016E 16 10 16 54 29 67 40 54 103 65 14 75 244
VKDICSHX020E 20 15 16 54 29 67 40 54 103 65 16 71 233
VKDICSHX025E 25 20 16 65 34,5 85 49 65 115 70 19 77 368
VKDICSHX032E 32 25 16 69,5 39 85 49 73 128 78 22 84 486
VKDICSHX040E 40 32 16 82,5 46 108 64 86 146 88 26 94 763
VKDICSHX050E 50 40 16 89 52 108 64 98 164 93 31 102 1017
VKDICSHX063E 63 50 16 108 62 134 76 122 199 111 38 123 1727

FKM

Objednací číslo product.detail.attribute.d DN product.detail.attribute.PN product.detail.attribute.B product.detail.attribute.B[5:1] product.detail.attribute.C product.detail.attribute.C[5:1] product.detail.attribute.E product.detail.attribute.H product.detail.attribute.H[5:1] L Z product.detail.attribute.g
VKDICSHX016F 16 10 16 54 29 67 40 54 103 65 14 75 244
VKDICSHX020F 20 15 16 54 29 67 40 54 103 65 16 71 233
VKDICSHX025F 25 20 16 65 34,5 85 49 65 115 70 19 77 368
VKDICSHX032F 32 25 16 69,5 39 85 49 73 128 78 22 84 486
VKDICSHX040F 40 32 16 82,5 46 108 64 86 146 88 26 94 763
VKDICSHX050F 50 40 16 89 52 108 64 98 164 93 31 102 1017
VKDICSHX063F 63 50 16 108 62 134 76 122 199 111 38 123 1727
  • Connection system for solvent weld, threaded and flanged joints
  • Patented SEAT STOP® ball carrier system that lets you micro-adjust ball seats and minimise the axial force effect
  • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
  • PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of dismounting downstream pipes with the valve in the closed position
  • Floating full bore ball with high surface finish
  • Integrated bracket for valve anchoring
  • Ball seat carriers can be adjusted using the Easytorque adjustment kit
  • Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
