VKDBM - DUAL BLOCK® 2-way ball valve

DUAL BLOCK® 2-way ball valve with long spigot male ends in PP-H SDR 11 for butt welding or electrofusion (CVDM)
FIP has developed a VKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design. VKD is a True Union ball valve that meets the most stringent needs$required by industrial applications.

Další charakteristika:

  • Ergonomic HIPVC handle equipped with removable tool to adjust the ball seat carrier.
  • Handle lock 0°- 90° SHKD (available as an accessory) ergonomically operable during service and padlockable
  • Robust integrated bracket for valve anchoring, for easy and quick automation even after valve installation on the system via the Power Quick module (optional)
  • DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
  • Machined high surface finish ball that guarantees a smooth operation and increased reliability
Zpět Produktový list
Immagine della valvola VKD DN 10:50 in PP-H

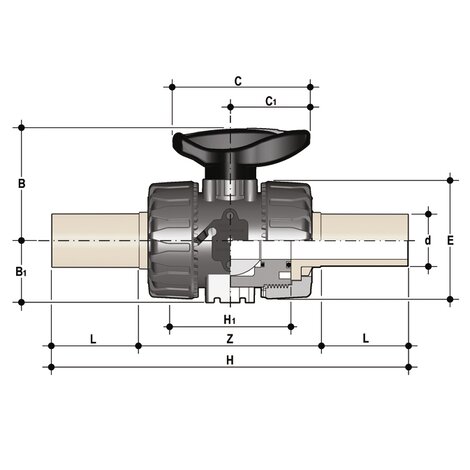

Disegno tecnico VKDBM-VKDBF DN 10:50
Immagine della valvola VKD DN 10:50 in PP-H
Disegno tecnico VKDBM-VKDBF DN 10:50
Objednací číslo d DN PN B B (5:1) C C (5:1) E H H (5:1) L Z g
VKDBM020E 20 15 10 54 29 67 40 54 175 65 40,5 94 220
VKDBM025E 25 20 10 65 35 85 49 65 212 70 54 106 340
VKDBM032E 32 25 10 70 39 85 49 73 226 78 56 117 443
VKDBM040E 40 32 10 83 46 108 64 86 246 88 56 131 593
VKDBM050E 50 40 10 89 52 108 64 98 271 93 60,5 145 945
VKDBM063E 63 50 10 108 62 134 76 122 300 111 65,5 161 1607
Objednací číslo d DN PN B B (5:1) C C (5:1) E H H (5:1) L Z g
VKDBM020F 20 15 10 54 29 67 40 54 175 65 40,5 94 220
VKDBM025F 25 20 10 65 35 85 49 65 212 70 54 106 340
VKDBM032F 32 25 10 70 39 85 49 73 226 78 56 117 443
VKDBM040F 40 32 10 83 46 108 64 86 246 88 56 131 593
VKDBM050F 50 40 10 89 52 108 64 98 271 93 60,5 145 945
VKDBM063F 63 50 10 108 62 134 76 122 300 111 65,5 161 1607
  • Connection system for solvent weld, threaded and flanged joints
  • Patented SEAT STOP® ball carrier system that lets you micro-adjust ball seats and minimise the axial force effect
  • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
  • PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of dismounting downstream pipes with the valve in the closed position
  • Floating full bore ball with high surface finish
  • Integrated bracket for valve anchoring
  • Ball seat carriers can be adjusted using the Easytorque adjustment kit
  • Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
