DUAL BLOCK® 2-way ball valve

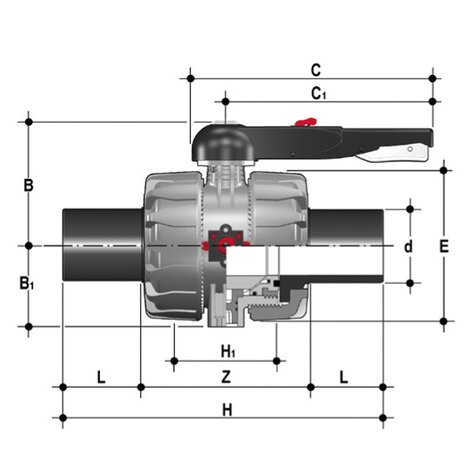

DUAL BLOCK® 2-way ball valve with PE100 SDR 11 male end connectors for butt welding or electrofusion (CVDE).
FIP has developed a VKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design. VKD is a True Union ball valve that meets the most stringent needs$required by industrial applications. This valve is also equipped with a customisable Labelling System.

Další charakteristika:

  • HIPVC ergonomic multifunctional handle for quick operation, lock and graduated adjustment in 10 positions. Possibility of inhibiting rotation with a lock
  • Customisable Labelling System: LCE module made of a transparent protection plug and customisable tag holder using the LSE set (available as accessory). The customisation lets you identify the valve on the system according to specific needs
  • DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
  • Double stem with double O-Rings for ball centring and operating torque reduction
  • Machined high surface finish ball that guarantees a smooth operation and increased reliability
Zpět Produktový list
  • Connection system for solvent weld, threaded and flanged joints
  • Patented SEAT STOP® ball carrier system that lets you micro-adjust seals and minimise axial force effects
  • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
  • PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of dismounting downstream pipes with the valve in the closed position
  • Full bore ball with high surface finish
  • Integrated bracket for valve anchoring
  • Possibility of installing a manual reducer or pneumatic and/or electric actuators by applying an ISO standard bore PP-GR flange
  • STAINLESS steel co-moulded stem, with square section as per ISO 5211
  • Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
