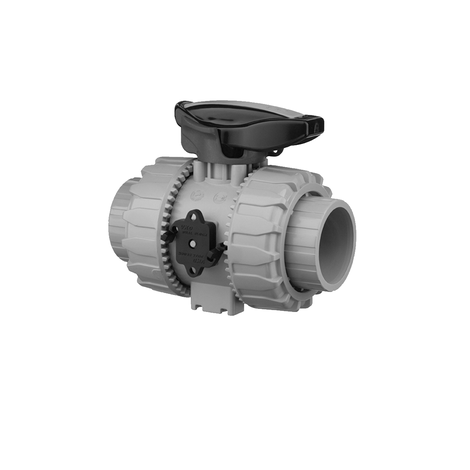

VKDAC - DUAL BLOCK® 2-WAY BALL VALVE

DUAL BLOCK® 2-way ball valve with female ends for solvent welding, ASTM series
FIP has developed a VKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design. VKD is a True Union ball valve that meets the most stringent needs$required by industrial applications.

Další charakteristika:

  • Ergonomic HIPVC handle equipped with removable tool to adjust the ball seat carrier.
  • Handle lock 0°- 90° SHKD (available as an accessory) ergonomically operable during service and padlockable
  • Robust integrated bracket for valve anchoring, for easy and quick automation even after valve installation on the system via the Power Quick module (optional)
  • DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
  • Machined high surface finish ball that guarantees a smooth operation and increased reliability
Zpět Produktový list

EPDM

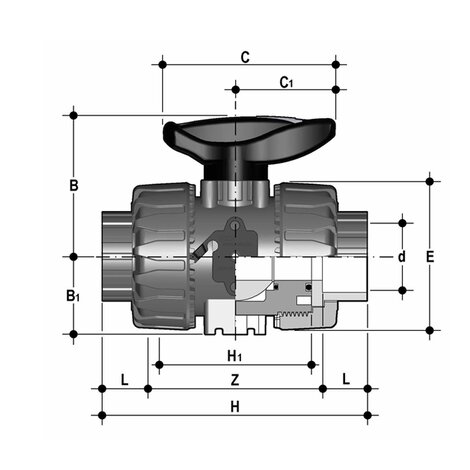

Objednací číslo product.detail.attribute.d DN product.detail.attribute.PN product.detail.attribute.B product.detail.attribute.B[5:1] product.detail.attribute.C product.detail.attribute.C[5:1] product.detail.attribute.E product.detail.attribute.H product.detail.attribute.H[5:1] L Z product.detail.attribute.g
VKDAC012E 1/2” 15 16 54 29 67 40 54 117 65 22,5 72 234
VKDAC034E 3/4” 20 16 65 34,5 85 49 65 129 70 25,5 78 375
VKDAC100E 1” 25 16 69,5 39 85 49 73 142 78 28,7 84,6 487
VKDAC114E 1” 1/4 32 16 82,5 46 108 64 86 162 88 32 98 780
VKDAC112E 1” 1/2 40 16 89 52 108 64 98 172 93 35 102 1062
VKDAC200E 2” 50 16 108 62 134 76 122 199 111 38,2 122,6 1864

FKM

Objednací číslo product.detail.attribute.d DN product.detail.attribute.PN product.detail.attribute.B product.detail.attribute.B[5:1] product.detail.attribute.C product.detail.attribute.C[5:1] product.detail.attribute.E product.detail.attribute.H product.detail.attribute.H[5:1] L Z product.detail.attribute.g
VKDAC012F 1/2” 15 16 54 29 67 40 54 117 65 22,5 72 237
VKDAC034F 3/4” 20 16 65 34,5 85 49 65 129 70 25,5 78 375
VKDAC100F 1” 25 16 69,5 39 85 49 73 142 78 28,7 84,6 487
VKDAC114F 1” 1/4 32 16 82,5 46 108 64 86 162 88 32 98 780
VKDAC112F 1” 1/2 40 16 89 52 108 64 98 172 93 35 102 1062
VKDAC200F 2” 50 16 108 62 134 76 122 199 111 38,2 122,6 1864
  • Connection system for solvent weld, threaded and flanged joints
  • Patented SEAT STOP® ball carrier system that lets you micro-adjust ball seats and minimise the axial force effect
  • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
  • PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of dismounting downstream pipes with the valve in the closed position
  • Floating full bore ball with high surface finish
  • Integrated bracket for valve anchoring
  • Ball seat carriers can be adjusted using the Easytorque adjustment kit
  • Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
