SXENC - EASYFIT TRUE UNION SPRING CHECK VALVE

Easyfit ball check valve with female ends, NPT thread
The SSE Easyfit check valve with spring loaded shutter developed with Giugiaro Design stands out for the innovative installation method that guarantees reliable service over time. This valve is also equipped with a customising Labelling System.

Další charakteristika:

  • Customisable Labelling System: built-in LCE module on the valve body made up of transparent protection plug and customisable tag holder using the LSE set (available as accessory). The customisation potential lets you identify the valve on the system according to specific needs
  • Locked ball seat carrier safe dismounting for maintenance with the Easyfit multifunctional handle
  • Ideal for horizontal installations: perfect seal even with low back pressure. Silent and durable even with strong vibrations and pulsating fluid
  • PVC-U shutter and springs available in STAINLESS Steel 316, A316 PTFE encapsulated: maximum reliability in a wide field of applications from salt water to aggressive acids
Zpět Produktový list

EPDM

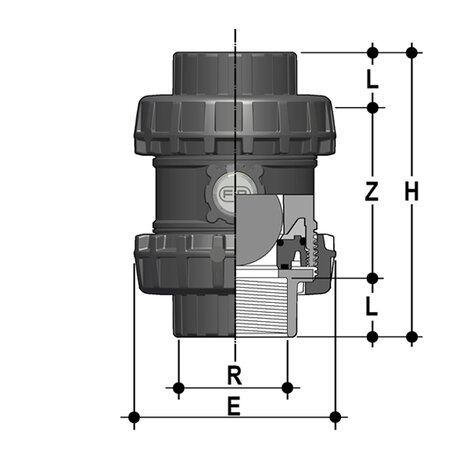

Objednací číslo product.detail.attribute.R DN PN E H L Z g
SXENC212E 2” 1/2 65 16 157 211 33,2 144,6 2839
SXENC300E 3” 80 16 174 248 35,5 177 3597
SXENC400E 4” 100 16 212 283 37,6 207,8 6289

FKM

Objednací číslo product.detail.attribute.R DN PN E H L Z g
SXENC212F 2” 1/2 65 16 157 211 33,2 144,6 2839
SXENC300F 3” 80 16 174 248 35,5 177 3597
SXENC400F 4” 100 16 212 283 37,6 207,8 6289
  • Connection system for solvent weld and threaded joints
  • Valve material compatibility (PVC-C) with water conveyance, drinking water and other food substances according to current regulations
  • PN16 True Union valve body made for PVC-C injection moulding and European Directive 2014/68/EU (PED) compliant for pressurised equipment. ISO 9393 compliant test requirements
  • Easy radial disassembly and fully interchangeable with VXE 65-100 valve models
  • Union nut profile that perfectly adapts to the Easyfit multifunctional handle hooked insert (available as an accessory) that lets you control union nut rotation
  • Can be installed in either a vertical or horizontal position
