FITTINGS FOR SOCKET WELDING - STUBS

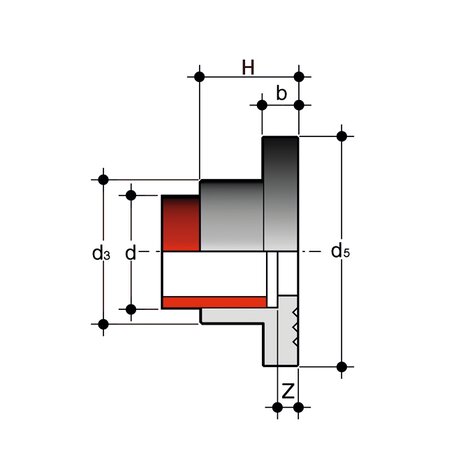

Stub with serrated face (according to DIN standards) for socket welding, for use with backing rings ODB
Series of fittings designed for conveying fluids under pressure with a hot weld connection system (socket welding).
| Objednací číslo | d | DN | PN | product.detail.attribute.b | product.detail.attribute.d[5:3] | product.detail.attribute.d[5:4] | H | Z | g |
|---|---|---|---|---|---|---|---|---|---|
| QRNM020 | 20 | 15 | 10 | 7 | 27 | 45 | 20 | 6 | 12 |
| QRNM025 | 25 | 20 | 10 | 9 | 33 | 58 | 22 | 6 | 24 |
| QRNM032 | 32 | 25 | 10 | 10 | 41 | 68 | 25 | 6 | 36 |
| QRNM040 | 40 | 32 | 10 | 11 | 50 | 78 | 27 | 6 | 47 |
| QRNM050 | 50 | 40 | 10 | 12 | 61 | 88 | 30 | 6 | 63 |
| QRNM063 | 63 | 50 | 10 | 14 | 76 | 102 | 34 | 6 | 94 |
| QRNM075 | 75 | 65 | 10 | 16 | 90 | 122 | 38 | 6 | 149 |
| QRNM090 | 90 | 80 | 10 | 17 | 108 | 138 | 44 | 8 | 213 |
| QRNM110 | 110 | 110 | 10 | 18 | 131 | 158 | 50 | 8 | 297 |
