FITTINGS FOR SOCKET WELDING - UNIONS

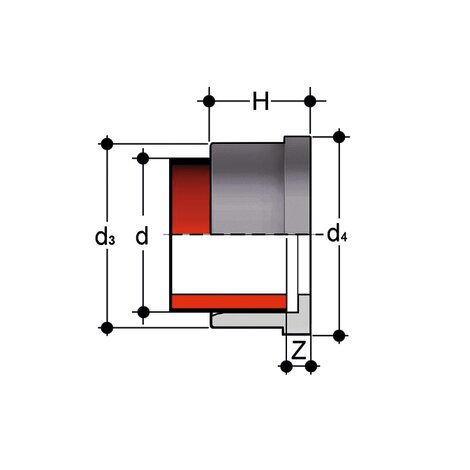

Union end for socket welding, metric series
Series of fittings designed for conveying fluids under pressure with a hot weld connection system (socket welding).
| Objednací číslo | d | DN | PN | product.detail.attribute.d[5:3] | product.detail.attribute.d[5:4] | H | Z | g |
|---|---|---|---|---|---|---|---|---|
| QBIGM020 | 20 | 15 | 10 | 27,5 | 30,1 | 19,5 | 5,5 | 7 |
| QBIGM025 | 25 | 20 | 10 | 36 | 38,8 | 21,5 | 5,5 | 14 |
| QBIGM032 | 32 | 25 | 10 | 41,5 | 44,7 | 23,5 | 5,5 | 17 |
| QBIGM040 | 40 | 32 | 10 | 53 | 56,5 | 25,5 | 5,5 | 30 |
| QBIGM050 | 50 | 40 | 10 | 59 | 62,6 | 28,5 | 5,5 | 30 |
| QBIGM063 | 63 | 50 | 10 | 74 | 78,4 | 32,5 | 5,5 | 51 |
