Q/BFO
ADAPTOR FITTINGS - BRASS UNION ENDS

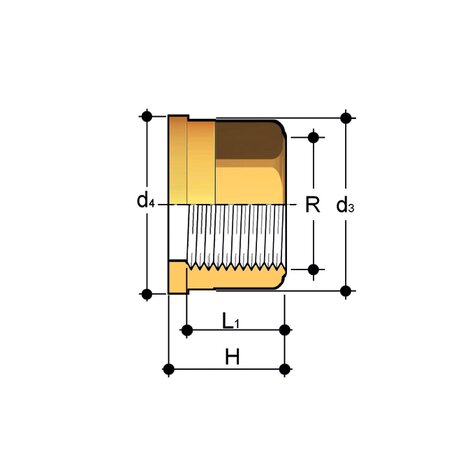

Union end in brass with female BSP thread
Series of fittings designed for conveying fluids under pressure with threaded and cold chemical solvent weld jointing systems (solvent welding) using suitable solvent cement (TemperGLUE WELD-ON) and cleaner-primer.
| Objednací číslo | product.detail.attribute.R | product.detail.attribute.d[5:3] | product.detail.attribute.d[5:4] | H | L | g |
|---|---|---|---|---|---|---|
| QBFO012 | 1/2" | 27,5 | 30,1 | 22,5 | 16,5 | 60 |
| QBFO034 | 3/4" | 36 | 38,8 | 25,5 | 18,5 | 116 |
| QBFO038 | 3/8" | 22 | 24 | 21,5 | 13,5 | 38 |
| QBFO100 | - | - | - | - | - | - |
| QBFO112 | 1"1/2 | 59 | 62,6 | 33,5 | 23 | 325 |
| QBFO114 | 1"1/4 | 53 | 56,5 | 30,5 | 21.5 | 260 |
| QBFO200 | 2" | 74 | 78,4 | 38,5 | 27 | 578 |
