PRESSURE PIPE PN6 SDR 17,6 - S8,3

Pressure pipe
PP-H pressure pipe according to DIN 8077/8078, Beige - RAL 7032, standard length 5m
Pressure pipes for connection system by butt or socket welding.
Zpět Produktový list

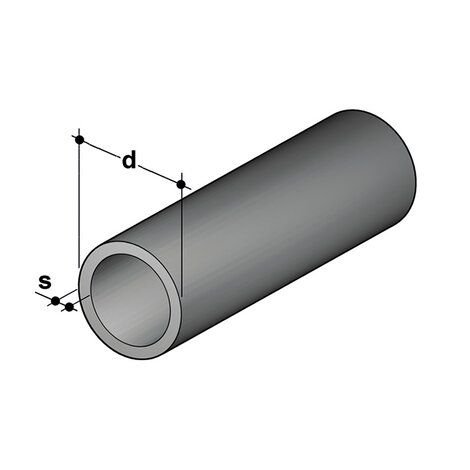

Disegno tecnico del tubo a pressione in PVC-U
Objednací číslo d DN S product.detail.attribute.kg/m
PIPEM17025 25 20 1,8 0,13
PIPEM17032 32 25 1,9 0,17
PIPEM17040 40 32 2,3 0,27
PIPEM17050 50 40 2,9 0,42
PIPEM17063 63 50 3,6 0,66
PIPEM17075 75 65 4,3 0,94
PIPEM17090 90 80 5,1 1,33
PIPEM17110 110 100 6,3 1,99
PIPEM17125 125 100 7,1 2,55
PIPEM17140 140 125 8,0 3,20
PIPEM17160 160 150 9,1 4,17
PIPEM17180 180 150 10,2 5,25
PIPEM17200 200 200 11,4 6,50
PIPEM17225 225 200 12,8 8,19
PIPEM17250 250 250 14,2 10,10
PIPEM17280 280 250 15,9 12,60
PIPEM17315 315 300 17,9 16,00
PIPEM17355 355 350 20,1 20,30
PIPEM17400 400 400 22,7 25,70
PIPEM17450 450 500 25,5 32,50
PIPEM17500 500 500 28,4 40,20
PIPEM17560 560 600 31,7 50,30
PIPEM17630 630 600 35,7 63,70
PIPEM17710 710 700 40,2 80,80
PIPEM17800 800 800 45,3 103,00
