ODC
FLANGES - ISO-DIN SERIES.

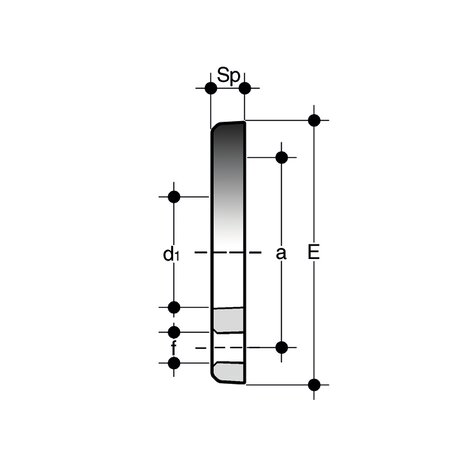

Backing ring in PVC-C for stubs QRC EN/ISO/DIN. Drilling: PN10 up to DN100.
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement (TemperGLUE WELD-ON) and cleaner-primer.
| Objednací číslo | product.detail.attribute.d | DN | product.detail.attribute.*PMA (bar) | M | product.detail.attribute.D | product.detail.attribute.d[5:2] | product.detail.attribute.d6 | product.detail.attribute.K | product.detail.attribute.**(Nm) | product.detail.attribute.n | product.detail.attribute.b | product.detail.attribute.g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ODC020 | 20 | 15 | 10 | M12 x 70 | 96 | 14 | 28 | 65 | 10 | 4 | 11 | 66 |
| ODC025 | 25 | 20 | 10 | M12 x 70 | 107 | 14 | 34 | 75 | 10 | 4 | 12 | 93 |
| ODC032 | 32 | 25 | 10 | M12 x 70 | 116 | 14 | 42 | 85 | 10 | 4 | 14 | 122 |
| ODC040 | 40 | 32 | 10 | M16 x 85 | 142 | 18 | 51 | 100 | 13 | 4 | 15 | 200 |
| ODC050 | 50 | 40 | 10 | M16 x 85 | 153 | 18 | 62 | 110 | 13 | 4 | 16 | 245 |
| ODC063 | 63 | 50 | 10 | M16 x 95 | 168 | 18 | 78 | 125 | 15 | 4 | 18 | 310 |
| ODC075 | 75 | 65 | 10 | M16 x 95 | 188 | 18 | 91 | 145 | 17 | 4 | 19 | 425 |
| ODC090 | 90 | 80 | 10 | M16 x 105 | 199 | 18 | 109 | 160 | 18 | 8 | 20 | 455 |
| ODC110 | 110 | 100 | 10 | M16 x 105 | 219 | 18 | 132 | 180 | 20 | 8 | 22 | 545 |
