MIM
FITTINGS FOR SOCKET WELDING - EQUAL SOCKET
End connector for socket welding
Series of fittings designed for conveying fluids under pressure with a hot weld connection system (socket welding).

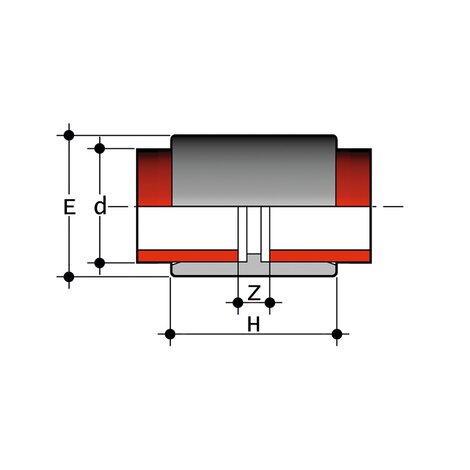

| Objednací číslo | d | DN | PN | E | H | Z | g |
|---|---|---|---|---|---|---|---|
| MIM020 | 20 | 15 | 10 | 28 | 36 | 8 | 10 |
| MIM025 | 25 | 20 | 10 | 34 | 39 | 8 | 16 |
| MIM032 | 32 | 25 | 10 | 42 | 43 | 9 | 25 |
| MIM040 | 40 | 32 | 10 | 52 | 47 | 8 | 39 |
| MIM050 | 50 | 40 | 10 | 63 | 55 | 8 | 62 |
| MIM063 | 63 | 50 | 10 | 78 | 61 | 9 | 96 |
| MIM075 | 75 | 65 | 10 | 91 | 70 | 10 | 145 |
| MIM090 | 90 | 80 | 10 | 109 | 80 | 10 | 230 |
| MIM110 | 110 | 100 | 10 | 132 | 93 | 12 | 370 |
