M9.05.PX - M9.05.WX
Conductivity Monitor and Transmitter
Conductivity Monitor and Transmitter

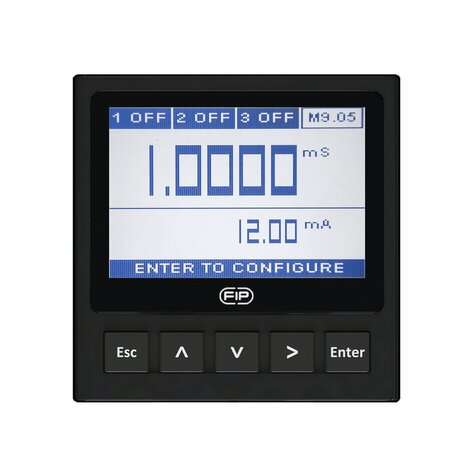

FLS M9.05 is a powerful conductivity monitor
and transmitter studied to fit
a broad range of applications
included ultrapure water
process. A 4” wide full graphic
display shows measured
values clearly together with
many other useful information.
Moreover, due to the
multicolor bright backlight,
measurement status can
be determined easily also
from very long distance. A
tutorial software guarantees
a mistake-proof and fast
set up of every parameter.
Measured values can be
showed as resistivity or TDS
in according with customer
needs. A cell constant freely
fixable allows to use all types
of 2-cell conductivity probe.
Two 4-20mA output grants to
remote values of conductivity
and temperature to external
devices. A proper combination
of digital outputs allows
customized setups for any
process to be controlled.
The USB port on the rear
part allows the upgrade of
software offering a wide range
of customization services both
standard and on request.
| Objednací číslo | product.detail.attribute.Mounting | product.detail.attribute.Power supply | product.detail.attribute.Wire power Technology | product.detail.attribute.Sensor Input | product.detail.attribute.Output | product.detail.attribute.Weight (gr.) |
|---|---|---|---|---|---|---|
| M9.05.P1 | Panel | 12 - 24 VCC | 3/4 wire | Conductivity | 2*(4-20mA) $ 2*(S.S.R.) $ 2* (mech. relay) | 550 |
| M9.05.W1 | Wall | 12 - 24 VCC | 3/4 wire | Conductivity | 2*(4-20mA) $ 2*(S.S.R.) $ 2* (mech. relay) | 650 |
| M9.05.W2 | Wall | 110 - 230 VCA | 3/4 wire | Conductivity | 2*(4-20mA) $ 2*(S.S.R.) $ 2* (mech. relay) | 750 |
- APPLICATIONS • Water treatment and regeneration • Industrial waste water treatment and recovery • Softener process • Filtration systems • Desalination process • Demineralized water production • Reverse osmosis/EDI process • Cooling water monitoring • Processing and manufacturing industry • Chemical production MAIN FEATURES • Wide full graphic display • Multicolor backlight visualization • Help on board • UPW temperature compensation • Cell constant settable freely • Values in conductivity, resistivity, TDS • Analog output for temperature remoting • Mechanical relay for external device control • Solid State Relays for programmable alarms • USB port for software upgrading
