F/BIGM
FITTINGS FOR SOCKET WELDING - UNIONS

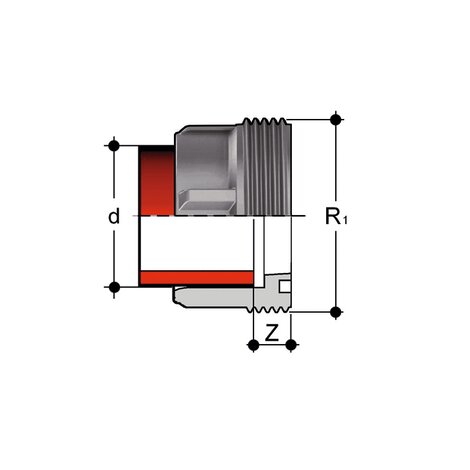

Union bush for socket welding, metric series
Series of fittings designed for conveying fluids under pressure with a hot weld connection system (socket welding).
| Objednací číslo | d | DN | product.detail.attribute.R[5:1] | PN | Z | g |
|---|---|---|---|---|---|---|
| FBIGM020 | 20 | 15 | 1" | 10 | 12 | 10 |
| FBIGM025 | 25 | 20 | 1"1/4 | 10 | 12 | 17 |
| FBIGM032 | 32 | 25 | 1"1/2 | 10 | 12 | 24 |
| FBIGM040 | 40 | 32 | 2" | 10 | 14 | 39 |
| FBIGM050 | 50 | 40 | 2"1/4 | 10 | 16 | 47 |
| FBIGM063 | 63 | 50 | 2"3/4 | 10 | 18 | 89 |
