DKLDF - DIALOCK® 2-way diaphragm valve

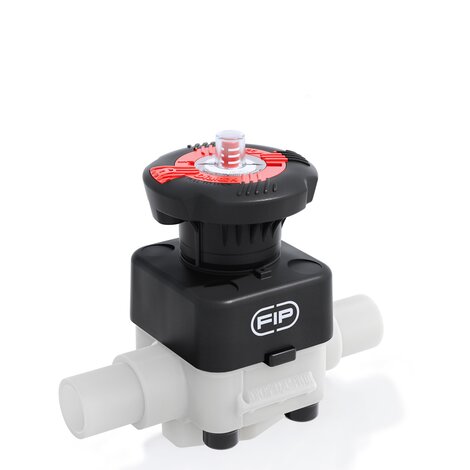

DIALOCK® diaphragm valve with stroke limiter and male ends for socket welding, metric series
The DK DIALOCK® diaphragm valve is particularly suitable for shutting off and regulating abrasive or dirty fluids. The new internal geometry of the body increases flow coefficient, reduce pressure drop and allows a sensitive and precise adjustment along the entire stroke of the shutter. The DK is extremely compact and very light. The innovative handwheel is equipped with a patented immediate and ergonomic operating locking device that allows it to be adjusted and locked in any position.

Další charakteristika:

  • High visibility graduated optical position indicator protected by a transparent cap with seal O-Ring
  • Customisation plate: the customisation lets you identify the valve on the system according to specific needs
  • DIALOCK® SYSTEM: innovative handwheel with a patented immediate and ergonomic operating locking device that allows it to be adjusted and locked in over 300 positions
  • Handwheel and bonnet in high mechanical strength and chemically resistant PP-GR, providing full protection by isolating all internal metal parts from contact with external agents
  • Floating pin connection between the control screw and diaphragm to prevent concentrated loads, improve the seal and extend its lifetime
  • New design of valve body interior: substantially increased flow coefficient and reduced pressure drop. The degree of efficiency reached has also enabled the size and weight of the valve to be reduced
  • Adjustment linearity: the internal profiles of the valve also greatly improve its characteristic curve, resulting in extremely sensitive and precise adjustment along the entire stroke of the shutter
  • Valve anchoring bracket integrated in the body, with threaded metal inserts allowing simple panel or wall mounting using the PMDK mounting plate (supplied as an accessory)
Zpět Produktový list
Valvola a membrana a 2 vie DIALOCK® DKLDF DN 15:65 in PVDF
DKLDF - DIALOCK® 2-way diaphragm valve
DKLDF - DIALOCK® 2-way diaphragm valve
DKLDF - DIALOCK® 2-way diaphragm valve
Valvola a membrana a 2 vie DIALOCK® DKLDF DN 15:65 in PVDF
DKLDF - DIALOCK® 2-way diaphragm valve
DKLDF - DIALOCK® 2-way diaphragm valve
DKLDF - DIALOCK® 2-way diaphragm valve

EPDM

Objednací číslo Materiál Kategorie Série d DN PN B B (5:1) H H (5:1) L g
DKLDF020E PVDF system Armatury DK DN 15÷65 20 15 10 115 25 124 80 16 527
DKLDF025E PVDF system Armatury DK DN 15÷65 25 20 10 118 30 144 80 19 557
DKLDF032E PVDF system Armatury DK DN 15÷65 32 25 10 127 33 154 80 22 786
DKLDF040E PVDF system Armatury DK DN 15÷65 40 32 10 132 30 174 80 26 847
DKLDF050E PVDF system Armatury DK DN 15÷65 50 40 10 175 35 194 120 31 1760
DKLDF063E PVDF system Armatury DK DN 15÷65 63 50 10 200 46 224 120 38 2753
DKLDF075E PVDF system Armatury DK DN 15÷65 75 65 10 200 46 284 120 44 2931

FKM

Objednací číslo Materiál Kategorie Série d DN PN B B (5:1) H H (5:1) L g
DKLDF020F PVDF system Armatury DK DN 15÷65 20 15 10 115 25 124 80 16 527
DKLDF025F PVDF system Armatury DK DN 15÷65 25 20 10 118 30 144 80 19 557
DKLDF032F PVDF system Armatury DK DN 15÷65 32 25 10 127 33 154 80 22 786
DKLDF040F PVDF system Armatury DK DN 15÷65 40 32 10 132 30 174 80 26 847
DKLDF050F PVDF system Armatury DK DN 15÷65 50 40 10 175 35 194 120 31 1760
DKLDF063F PVDF system Armatury DK DN 15÷65 63 50 10 200 46 224 120 38 2753
DKLDF075F PVDF system Armatury DK DN 15÷65 75 65 10 200 46 284 120 44 2931

PTFE

Objednací číslo Materiál Kategorie Série d DN PN B B (5:1) H H (5:1) L g
DKLDF020P PVDF system Armatury DK DN 15÷65 20 15 10 115 25 124 80 16 527
DKLDF025P PVDF system Armatury DK DN 15÷65 25 20 10 118 30 144 80 19 557
DKLDF032P PVDF system Armatury DK DN 15÷65 32 25 10 127 33 154 80 22 786
DKLDF040P PVDF system Armatury DK DN 15÷65 40 32 10 132 30 174 80 26 847
DKLDF050P PVDF system Armatury DK DN 15÷65 50 40 10 175 35 194 120 31 1760
DKLDF063P PVDF system Armatury DK DN 15÷65 63 50 10 200 46 224 120 38 2753
DKLDF075P PVDF system Armatury DK DN 15÷65 75 65 10 200 46 284 120 44 2931
  • Connection system for solvent weld, threaded and flanged joints
  • Optimised fluid dynamic design: maximum output flow rate thanks to the optimised efficiency of the fluid dynamics that characterise the new internal geometry of the body
  • Internal components in metal, totally isolated from the fluid and external environment
  • Modularity of the range: only 2 handwheel and 4 diaphragm and bonnet sizes for 7 different valve sizes
  • Non-rising handwheel that stays at the same height during rotation, equipped with a graduated optical indicator protected by a transparent PVC cap with seal O-Ring
  • Bonnet fastening screws in stainless steel protected against the external environment by PE plugs. Absence of metal parts exposed to the external environment to prevent any risk of corrosion.
  • CDSA (Circular Diaphragm Sealing Angle) system that, thanks to the uniform distribution of shutter pressure on the diaphragm seal, offers the following advantages:
  • reduction in the tightening torque of the screws fixing the actuator to the valve body
  • reduced mechanical stress on all valve components (actuator, body and diaphragm)
  • easy to clean valve interior
  • low risk of the accumulation of deposits, contamination or damage to the diaphragm due to crystallisation
  • operating torque reduction
