BIRXM

ADAPTOR FOR SOCKET WELDING - UNIONS
Adaptor union in PP-H/STAINLESS steel for socket welding (d), BSP (R) threaded A316L STAINLESS steel male end with O-Ring in EPDM or FKM
Series of fittings designed for conveying fluids under pressure with a hot thread and weld connection system (socket welding).
Zpět Produktový list
BIRXM

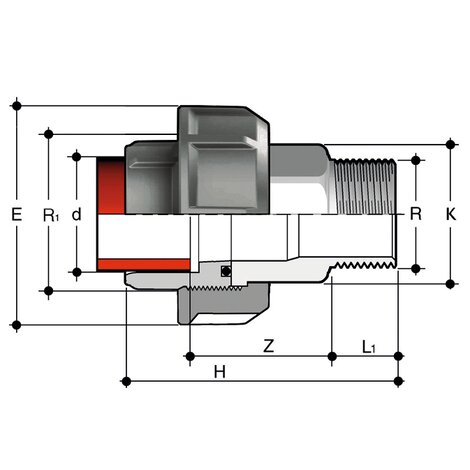

Objednací číslo product.detail.attribute.d x R product.detail.attribute.R[5:1] product.detail.attribute.PN product.detail.attribute.E product.detail.attribute.H product.detail.attribute.K L Z product.detail.attribute.g
BIRXM020012F 20 x 1/2" 1" 10 47 65 25 13,5 37,5 123
BIRXM025034F 25 x 3/4" 1"1/4 10 58 71,5 32 15 40,5 208
BIRXM032100F 32 x 1" 1"1/2 10 65 78 38 17,5 42,5 263
BIRXM040114F 40 x 1"1/4 2" 10 78 87 48 19,5 47,5 490
BIRXM050112F 50 x 1"1/2 2"1/4 10 85 95 55 19,5 52,5 613
BIRXM063200F 63 x 2" 2"3/4 10 103 113,5 69 24 62,5 1050
