BBM-C
FITTINGS FOR BUTT WELDING - UNIONS
Short spigot union for butt welding with seal in EPDM or FKM
Series of fittings designed for conveying fluids under pressure with a weld connection system (butt welding).

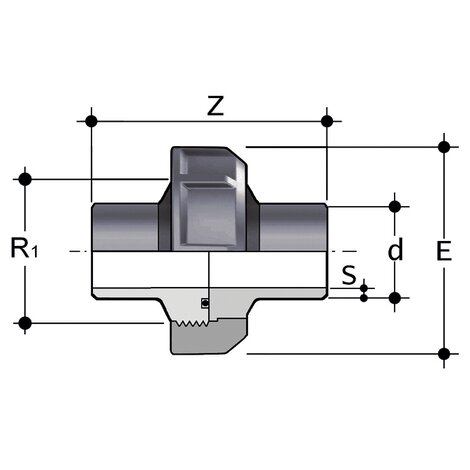

| Objednací číslo | product.detail.attribute.d | DN | product.detail.attribute.E | S | Z | product.detail.attribute.g |
|---|---|---|---|---|---|---|
| BBMC11020E | 20 | 15 | 46 | 1,9 | 110 | 80 |
| BBMC11025E | 25 | 20 | 56 | 2,3 | 110 | 75 |
| BBMC11032E | 32 | 25 | 66 | 2,9 | 110 | 120 |
| BBMC11040E | 40 | 32 | 79 | 3,7 | 110 | 175 |
| BBMC11050E | 50 | 40 | 87 | 4,6 | 110 | 240 |
| BBMC11063E | 63 | 50 | 107 | 5,8 | 110 | 440 |
