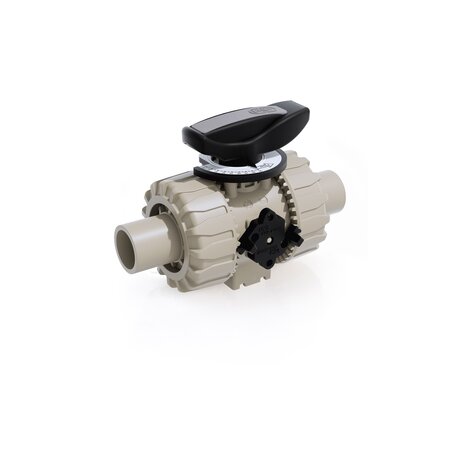

VKRBM - DUAL BLOCK® regulating ball valve

DUAL BLOCK® regulating ball valve with long spigot male ends in PP-H for butt welding or electrofusion (CVDM)
The VKR DUAL BLOCK® valve combines high reliability and safety aspects typical of VKD full bore ball valves with the new flow adjustment function with typical linear curve that meets the most stringent needs typical of industrial applications.

Další charakteristika:

  • HIPVC ergonomic multifunctional handle with position indicator and tool to adjust the ball seat carrier
  • Flow direction and opening angle indication plate with graduated scale with 5° detail for clear and accurate readings
  • 90° operating angle that permits the use of standard quarter turn actuators
  • The patented ball design provides linear flow adjustment throughout its range of operation even when the valve is open just a few degrees and guarantees minimum pressure drops
  • Patented DUAL BLOCK® system: prevents union nuts from loosening even under extreme operating conditions: e.g. vibration or thermal expansion
Zpět Produktový list
Valvola di regolazione a sfera DUAL BLOCK® VKRBM DN 10:50 in PP-H
VKRBM - DUAL BLOCK® regulating ball valve
Valvola di regolazione a sfera DUAL BLOCK® VKRBM DN 10:50 in PP-H
VKRBM - DUAL BLOCK® regulating ball valve

EPDM

Objednací číslo Materiál Kategorie Série d DN PN B B (5:1) C C (5:1) E H H (5:1) L Z g
VKRBM020E PP-H system Armatury VKR DN 10÷50 20 15 10 54 29 67 40 54 175 65 40,5 94 220
VKRBM025E PP-H system Armatury VKR DN 10÷50 25 20 10 65 35 85 49 65 212 70 54 106 340
VKRBM032E PP-H system Armatury VKR DN 10÷50 32 25 10 70 39 85 49 73 226 78 56 117 443
VKRBM040E PP-H system Armatury VKR DN 10÷50 40 32 10 83 46 108 64 86 246 88 56 131 593
VKRBM050E PP-H system Armatury VKR DN 10÷50 50 40 10 89 52 108 64 98 271 93 60,5 145 945
VKRBM063E PP-H system Armatury VKR DN 10÷50 63 50 10 108 62 134 76 122 300 111 65,5 161 1607

EPDM

Objednací číslo Materiál Kategorie Série d DN PN B B (5:1) C C (5:1) E H H (5:1) L Z g
VKRBM020E0LF PP-H system Armatury VKR DN 10÷50 20 15 10 54 29 67 40 54 175 65 40,5 94 220
VKRBM025E0LF PP-H system Armatury VKR DN 10÷50 25 20 10 65 35 85 49 65 212 70 54 106 340
VKRBM032E0LF PP-H system Armatury VKR DN 10÷50 32 25 10 70 39 85 49 73 226 78 56 117 443
VKRBM040E0LF PP-H system Armatury VKR DN 10÷50 40 32 10 83 46 108 64 86 246 88 56 131 593
VKRBM050E0LF PP-H system Armatury VKR DN 10÷50 50 40 10 89 52 108 64 98 271 93 60,5 145 945
VKRBM063E0LF PP-H system Armatury VKR DN 10÷50 63 50 10 108 62 134 76 122 300 111 65,5 161 1607

EPDM

Objednací číslo Materiál Kategorie Série d DN PN B B (5:1) C C (5:1) E H H (5:1) L Z g
VKRBM020E0SF PP-H system Armatury VKR DN 10÷50 20 15 10 54 29 67 40 54 175 65 40,5 94 220
VKRBM025E0SF PP-H system Armatury VKR DN 10÷50 25 20 10 65 35 85 49 65 212 70 54 106 340
VKRBM032E0SF PP-H system Armatury VKR DN 10÷50 32 25 10 70 39 85 49 73 226 78 56 117 443
VKRBM040E0SF PP-H system Armatury VKR DN 10÷50 40 32 10 83 46 108 64 86 246 88 56 131 593
VKRBM050E0SF PP-H system Armatury VKR DN 10÷50 50 40 10 89 52 108 64 98 271 93 60,5 145 945
VKRBM063E0SF PP-H system Armatury VKR DN 10÷50 63 50 10 108 62 134 76 122 300 111 65,5 161 1607

FKM

Objednací číslo Materiál Kategorie Série d DN PN B B (5:1) C C (5:1) E H H (5:1) L Z g
VKRBM020F PP-H system Armatury VKR DN 10÷50 20 15 10 54 29 67 40 54 175 65 40,5 94 220
VKRBM025F PP-H system Armatury VKR DN 10÷50 25 20 10 65 35 85 49 65 212 70 54 106 340
VKRBM032F PP-H system Armatury VKR DN 10÷50 32 25 10 70 39 85 49 73 226 78 56 117 443
VKRBM040F PP-H system Armatury VKR DN 10÷50 40 32 10 83 46 108 64 86 246 88 56 131 593
VKRBM050F PP-H system Armatury VKR DN 10÷50 50 40 10 89 52 108 64 98 271 93 60,5 145 945
VKRBM063F PP-H system Armatury VKR DN 10÷50 63 50 10 108 62 134 76 122 300 111 65,5 161 1607

FKM

Objednací číslo Materiál Kategorie Série d DN PN B B (5:1) C C (5:1) E H H (5:1) L Z g
VKRBM020F0LF PP-H system Armatury VKR DN 10÷50 20 15 10 54 29 67 40 54 175 65 40,5 94 220
VKRBM025F0LF PP-H system Armatury VKR DN 10÷50 25 20 10 65 35 85 49 65 212 70 54 106 340
VKRBM032F0LF PP-H system Armatury VKR DN 10÷50 32 25 10 70 39 85 49 73 226 78 56 117 443
VKRBM040F0LF PP-H system Armatury VKR DN 10÷50 40 32 10 83 46 108 64 86 246 88 56 131 593
VKRBM050F0LF PP-H system Armatury VKR DN 10÷50 50 40 10 89 52 108 64 98 271 93 60,5 145 945
VKRBM063F0LF PP-H system Armatury VKR DN 10÷50 63 50 10 108 62 134 76 122 300 111 65,5 161 1607

FKM

Objednací číslo Materiál Kategorie Série d DN PN B B (5:1) C C (5:1) E H H (5:1) L Z g
VKRBM020F0SF PP-H system Armatury VKR DN 10÷50 20 15 10 54 29 67 40 54 175 65 40,5 94 220
VKRBM025F0SF PP-H system Armatury VKR DN 10÷50 25 20 10 65 35 85 49 65 212 70 54 106 340
VKRBM032F0SF PP-H system Armatury VKR DN 10÷50 32 25 10 70 39 85 49 73 226 78 56 117 443
VKRBM040F0SF PP-H system Armatury VKR DN 10÷50 40 32
