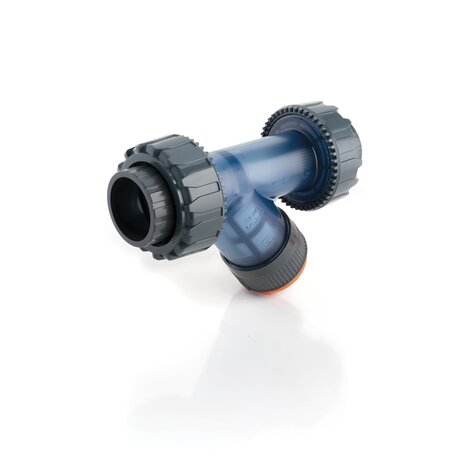

RVFV-RVFT - Sediment strainer
RVFV PVC-U rigid - RVFT PVC-U transparent$Sediment strainer with BSP threaded female ends
The RV Sediment strainer limits the passage of any solid particles present in the fluid by means of a strainer.

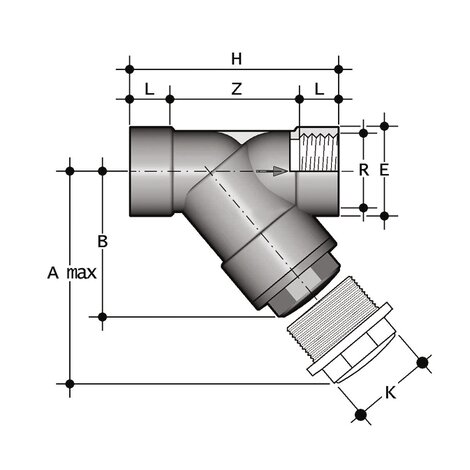

| Objednací číslo | Materiál | Kategorie | Série | product.detail.attribute.R | DN | product.detail.attribute.PN RVFV | product.detail.attribute.PN RVFT | product.detail.attribute.A max | B | E | H | product.detail.attribute.K | L | Z | product.detail.attribute.Fig. | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RVFV212E | PVC-U system | Armatury | RV DN 10÷100 | 2” 1/2 | 65 | 10 | 6 | 300 | 179 | 104 | 243 | 96 | 30,2 | 182,6 | B | 2385 |
| RVFV300E | PVC-U system | Armatury | RV DN 10÷100 | 3” | 80 | 6 | 4 | 325 | 192 | 116 | 262 | 105 | 33,3 | 195,4 | B | 2965 |
| RVFV400E | PVC-U system | Armatury | RV DN 10÷100 | 4” | 100 | 6 | 4 | 385 | 231 | 138 | 325 | - | 39,3 | 246,4 | C | 4405 |
| RVFT212E | PVC-U system | Armatury | RV DN 10÷100 | 2” 1/2 | 65 | 10 | 6 | 300 | 179 | 104 | 243 | 96 | 30,2 | 182,6 | B | 2385 |
| RVFT300E | PVC-U system | Armatury | RV DN 10÷100 | 3” | 80 | 6 | 4 | 325 | 192 | 116 | 262 | 105 | 33,3 | 195,4 | B | 2965 |
| RVFT400E | PVC-U system | Armatury | RV DN 10÷100 | 4” | 100 | 6 | 4 | 385 | 231 | 138 | 325 | - | 39,3 | 246,4 | C | 4405 |
- Connection system for solvent weld, threaded and flanged joints
- Strainer mounted on an easily removed support that facilitates the cleaning or replacement
- Valve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
