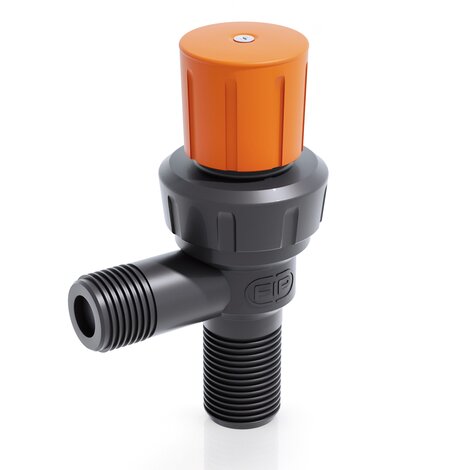

RMRV - Diaphragm cock valve
Diaphragm cock valve with BSP threaded male ends
The RM diaphragm cock valve is used to shut-off and regulate fluid flow and is characterised by its reduced size.

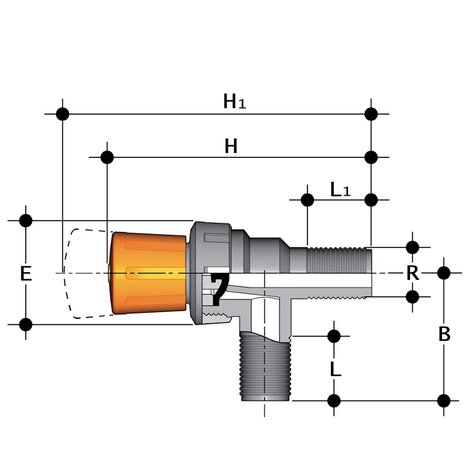

| Objednací číslo | Materiál | Kategorie | Série | product.detail.attribute.R | DN | PN | B | E | H | H (5:1) | L | L | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RMRV012E | PVC-U system | Armatury | RM DN 15 | 1/2” | 15 | 4 | 50 | 43 | 110 | 119 | 16 | 28 | 90 |
- Connection system for threaded joints
- Can be installed in any position
- Can be coupled to pipes in PVC-U, PVC-U plasticised, PE and rubber
- Valve material compatibility (PVC-U) with water, drinking water and other food substance conveyance according to current regulations
- Specifically designed for laboratory applications or for sampling purposes
