RIV

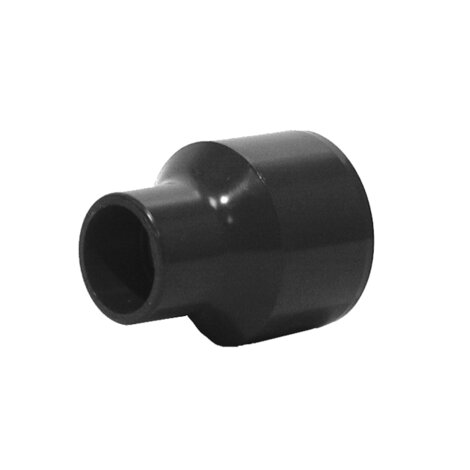

SOLVENT WELD FITTINGS - REDUCERS

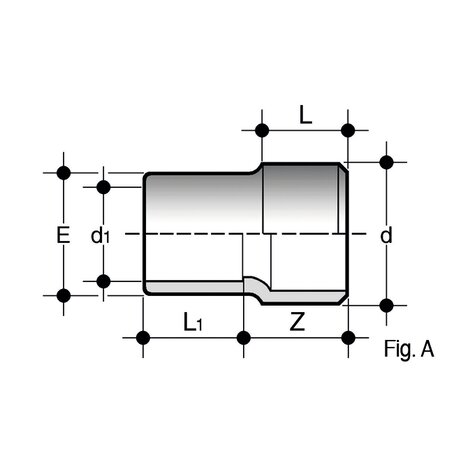

Reducer: solvent weld spigot (d), solvent weld socket (d1 reduced) (Fig.A)
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement and cleaner-primer.
| Objednací číslo | Materiál | Kategorie | product.detail.attribute.d x d[5:1] | PN | E | L | L | Z |
|---|---|---|---|---|---|---|---|---|
| RIV016012 | PVC-U system | Tvarovky | 16 x 12 | 16 | 19 | 14 | 12 | 18 |
| RIV020016 | PVC-U system | Tvarovky | 20 x 16 | 16 | 22 | 16 | 14 | 21 |
| RIV160110 | PVC-U system | Tvarovky | 160 x 110 | 16 | 137 | 86 | 61 | 125 |
| RIV200160 | PVC-U system | Tvarovky | 200 x 160 | 10 | 182 | 106 | 86 | 156 |
