RFV
THREADED FITTINGS - REDUCERS

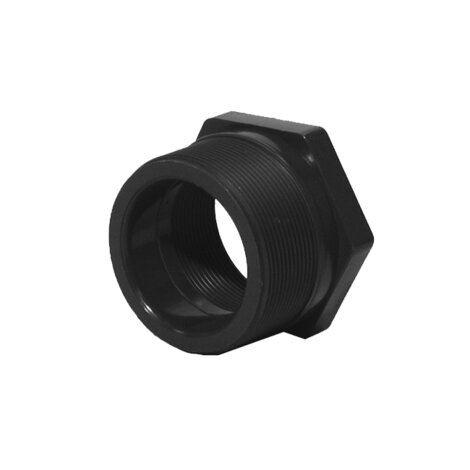

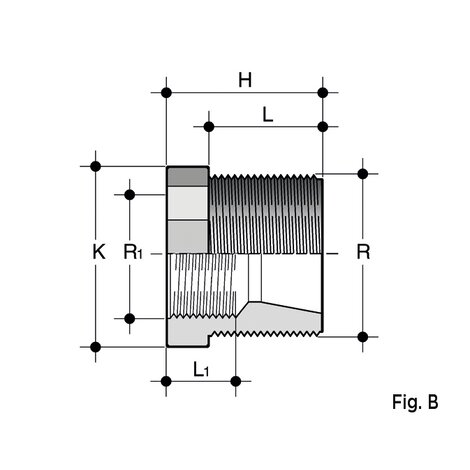

Reducer with BSP threaded male end (R) and BSP threaded female end (R1 reduced) (fig. B)
Series of fittings for pipes conveying fluids under pressure with threaded joints.
| Objednací číslo | Materiál | Kategorie | product.detail.attribute.R x R[5:1] | PN | E | H | product.detail.attribute.K | L | L | g |
|---|---|---|---|---|---|---|---|---|---|---|
| RFV212200 | PVC-U system | Tvarovky | 2"1/2 x 2" | 16 | - | 56 | 80 | 30,2 | 25,7 | 155 |
| RFV300200 | PVC-U system | Tvarovky | 3" x 2" | 16 | - | 66 | 93 | 33,3 | 25,7 | 185 |
| RFV300212 | PVC-U system | Tvarovky | 3" x 2"1/2 | 16 | - | 66 | 93 | 33,3 | 30,2 | 200 |
| RFV400300 | PVC-U system | Tvarovky | 4" x 3" | 16 | - | 79 | 118 | 39,3 | 33,3 | 500 |
