QRC

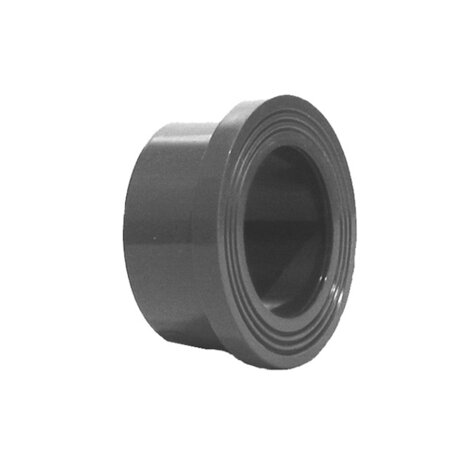

SOLVENT WELD FITTINGS - STUBS
Stub with serrated face according to DIN 8063 PN 10/16 with solvent weld socket, for use with flat gasket (for gasket sizes, see QHV)
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement (TemperGLUE WELD-ON) and cleaner-primer.
| Objednací číslo | Materiál | Kategorie | d | DN | PN | E | product.detail.attribute.F | L | product.detail.attribute.Sp | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|
| QRC020 | PVC-C system | Tvarovky | 20 | 15 | 16 | 27 | 34 | 16 | 7 | 3.5 | 11 |
| QRC025 | PVC-C system | Tvarovky | 25 | 20 | 16 | 33 | 41 | 19 | 7 | 3 | 17 |
| QRC032 | PVC-C system | Tvarovky | 32 | 25 | 16 | 41 | 50 | 22 | 7 | 3 | 27 |
| QRC040 | PVC-C system | Tvarovky | 40 | 32 | 16 | 50 | 61 | 26 | 8 | 3 | 43 |
| QRC050 | PVC-C system | Tvarovky | 50 | 40 | 16 | 61 | 73 | 31 | 8 | 3 | 66 |
| QRC063 | PVC-C system | Tvarovky | 63 | 50 | 16 | 76 | 90 | 38 | 9 | 3 | 116 |
| QRC075 | PVC-C system | Tvarovky | 75 | 65 | 16 | 90 | 103 | 44 | 10 | 3 | 175 |
| QRC090 | PVC-C system | Tvarovky | 90 | 80 | 16 | 108 | 125 | 51 | 10 | 5 | 305 |
| QRC110 | PVC-C system | Tvarovky | 110 | 100 | 16 | 131 | 150 | 61 | 12 | 4 | 490 |
| QRC160 | PVC-C system | Tvarovky | 160 | 150 | 16 | 188 | 212 | 86 | 16 | 4,5 | 1240 |
| QRC225 | PVC-C system | Tvarovky | 225 | 200 | 10 | 245 | 273 | 119 | 25 | 5,5 | 1750 |
