QPV
SOLVENT WELD FITTINGS - STUBS

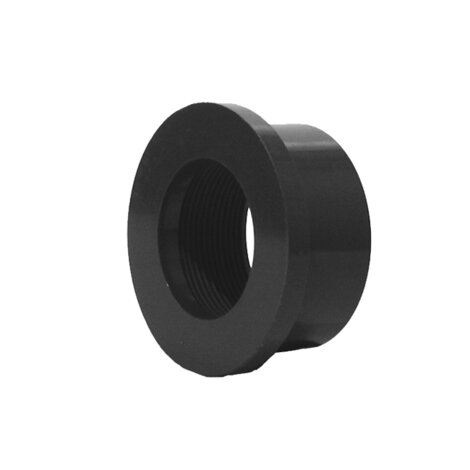

Flat face stub according to DIN 8063 PN 10/16 with solvent weld socket
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement and cleaner-primer.

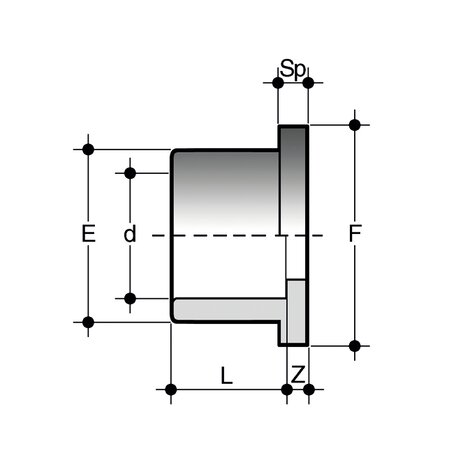

| Objednací číslo | Materiál | Kategorie | d | DN | PN | E | product.detail.attribute.F | L | product.detail.attribute.Sp | Z |
|---|---|---|---|---|---|---|---|---|---|---|
| QPV020 | PVC-U system | Tvarovky | 20 | 15 | 16 | 27 | 34 | 16 | 7 | 3,5 |
| QPV025 | PVC-U system | Tvarovky | 25 | 20 | 16 | 33 | 41 | 19 | 7 | 3 |
| QPV032 | PVC-U system | Tvarovky | 32 | 25 | 16 | 41 | 50 | 22 | 7 | 3 |
| QPV040 | PVC-U system | Tvarovky | 40 | 32 | 16 | 50 | 61 | 26 | 8 | 3 |
| QPV050 | PVC-U system | Tvarovky | 50 | 40 | 16 | 31 | 73 | 31 | 8 | 3 |
| QPV063 | PVC-U system | Tvarovky | 63 | 50 | 16 | 76 | 90 | 38 | 9 | 3 |
| QPV075 | PVC-U system | Tvarovky | 75 | 65 | 16 | 90 | 105 | 44 | 10 | 3 |
| QPV090 | PVC-U system | Tvarovky | 90 | 80 | 16 | 108 | 125 | 51 | 10 | 5 |
| QPV110 | PVC-U system | Tvarovky | 110 | 100 | 16 | 131 | 150 | 61 | 12 | 4 |
| QPV125 | PVC-U system | Tvarovky | 125 | 125 | 16 | 147 | 168 | 69 | 13 | 5 |
| QPV140 | PVC-U system | Tvarovky | 140 | 125 | 16 | 165 | 188 | 76 | 14 | 5 |
| QPV160 | PVC-U system | Tvarovky | 160 | 150 | 16 | 188 | 212 | 86 | 16 | 4,5 |
| QPV200 | PVC-U system | Tvarovky | 200 | 200 | 16 | 230 | 254 | 106 | 18 | 5,5 |
