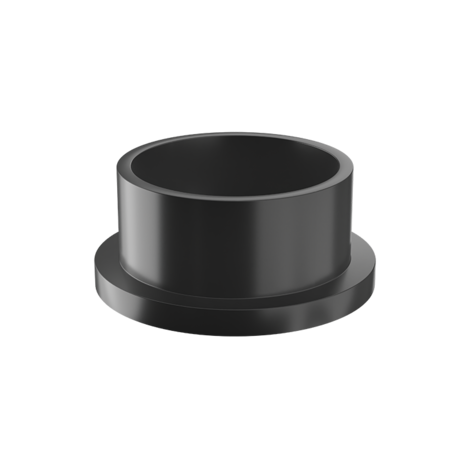

QLV
FITTINGS ACCORDING TO BRITISH STANDARD - STUBS
Serrated face stub with solvent weld socket, for use with stubs QLV and flat gaskets QHV/X and QHV/Y (QHV/Y only when coupling to ISO/DIN “ODV and ODB” flanges)
Series of fittings for pipes conveying fluids under pressure with solvent weld and threaded joints according to British Standard.
| Objednací číslo | Materiál | Kategorie | d | PN | E | product.detail.attribute.F | L | product.detail.attribute.Sp | Z | g | product.detail.attribute.Class |
|---|---|---|---|---|---|---|---|---|---|---|---|
| QLV200 | PVC-U system | Tvarovky | 2" | 15 | 76 | 90 | 38 | 9 | 3 | 110 | E |
| QPV075 | PVC-U system | Tvarovky | 2"1/2 | 15 | 90 | 106 | 44 | 10 | 3 | 165 | E |
| QLV300 | PVC-U system | Tvarovky | 3" | 15 | 108 | 125 | 51 | 11 | 5 | 270 | E |
| QLV400 | PVC-U system | Tvarovky | 4" | 15 | 131 | 158 | 61 | 12 | 5 | 445 | E |
| QLV600 | PVC-U system | Tvarovky | 6" | 12 | 188 | 216 | 86 | 16 | 5 | 1250 | D |
| QLV800 | PVC-U system | Tvarovky | 8" | 12 | 250 | 270 | 115 | 20 | 6,5 | 2150 | D |
