BIRXV
ADAPTOR FITTINGS - PVC-U/STAINLESS STEEL UNIONS.

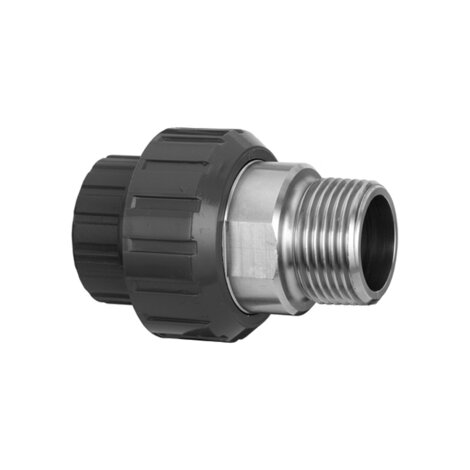

Adaptor union in PVC-U/stainless steel with solvent weld socket d and BSP threaded A316L stainless steel male end R with O-Ring in EPDM or FKM.
Series of fittings designed for conveying fluids under pressure with threaded and solvent weld cold chemical jointing systems (solvent welding) using suitable solvent cement and cleanerprimer.
EPDM

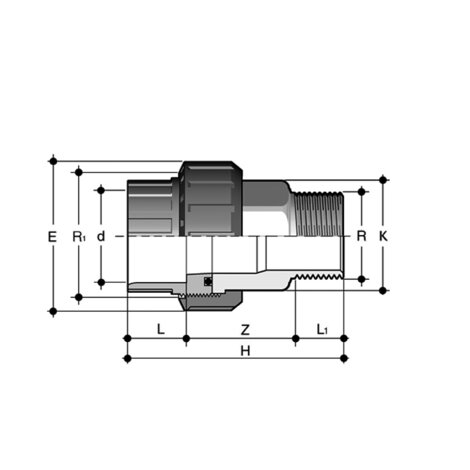

Objednací číslo | Materiál | Kategorie | d x R | R1 | PN | E | H | K | L | L | Z | g |
---|---|---|---|---|---|---|---|---|---|---|---|---|
BIRXV016038E | PVC-U system | Tvarovky | 16 x 3/8" | 3/4" | 16 | 33 | 58,5 | 20 | 14 | 10,5 | 34 | 74 |
BIRXV020012E | PVC-U system | Tvarovky | 20 x 1/2" | 1" | 16 | 41 | 65 | 25 | 16 | 13,5 | 35,5 | 123 |
BIRXV025034E | PVC-U system | Tvarovky | 25 x 3/4" | 1"1/4 | 16 | 50 | 72,5 | 32 | 19 | 15 | 38,5 | 215 |
BIRXV032100E | PVC-U system | Tvarovky | 32 x 1" | 1"1/2 | 16 | 58 | 80 | 38 | 22 | 17,5 | 40,5 | 269 |
BIRXV040114E | PVC-U system | Tvarovky | 40 x 1"1/4 | 2" | 16 | 72 | 91 | 48 | 26 | 19,5 | 45,5 | 516 |
BIRXV050112E | PVC-U system | Tvarovky | 50 x 1"1/2 | 2"1/4 | 16 | 79 | 101 | 55 | 31 | 19,5 | 50,5 | 639 |
BIRXV063200E | PVC-U system | Tvarovky | 63 x 2" | 2"3/4 | 16 | 98 | 122,5 | 69 | 38 | 24 | 60,5 | 1111 |
FKM
Objednací číslo | Materiál | Kategorie | d x R | R1 | PN | E | H | K | L | L | Z | g |
---|---|---|---|---|---|---|---|---|---|---|---|---|
BIRXV016038F | PVC-U system | Tvarovky | 16 x 3/8" | 3/4" | 16 | 33 | 58,5 | 20 | 14 | 10,5 | 34 | 74 |
BIRXV020012F | PVC-U system | Tvarovky | 20 x 1/2" | 1" | 16 | 41 | 65 | 25 | 16 | 13,5 | 35,5 | 123 |
BIRXV025034F | PVC-U system | Tvarovky | 25 x 3/4" | 1"1/4 | 16 | 50 | 72,5 | 32 | 19 | 15 | 38,5 | 215 |
BIRXV032100F | PVC-U system | Tvarovky | 32 x 1" | 1"1/2 | 16 | 58 | 80 | 38 | 22 | 17,5 | 40,5 | 269 |
BIRXV040114F | PVC-U system | Tvarovky | 40 x 1"1/4 | 2" | 16 | 72 | 91 | 48 | 26 | 19,5 | 45,5 | 516 |
BIRXV050112F | PVC-U system | Tvarovky | 50 x 1"1/2 | 2"1/4 | 16 | 79 | 101 | 55 | 31 | 19,5 | 50,5 | 639 |
BIRXV063200F | PVC-U system | Tvarovky | 63 x 2" | 2"3/4 | 16 | 98 | 122,5 | 69 | 38 | 24 | 60,5 | 1111 |
