BIROC
ADAPTOR FITTINGS - UNIONS

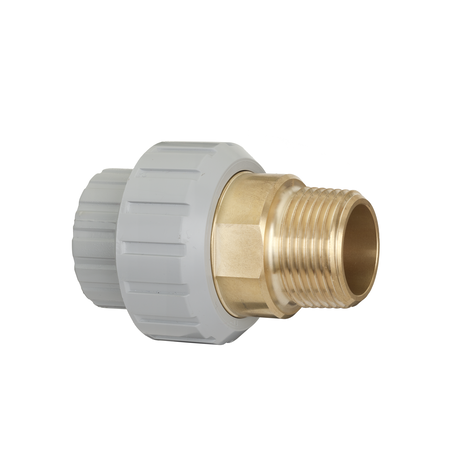

Adaptor union in PVC-C/brass with solvent weld socket d and BSP threaded brass male end R with O-Ring in EPDM
Series of fittings designed for conveying fluids under pressure with threaded and cold chemical solvent weld jointing systems (solvent welding) using suitable solvent cement (TemperGLUE WELD-ON) and cleaner-primer.

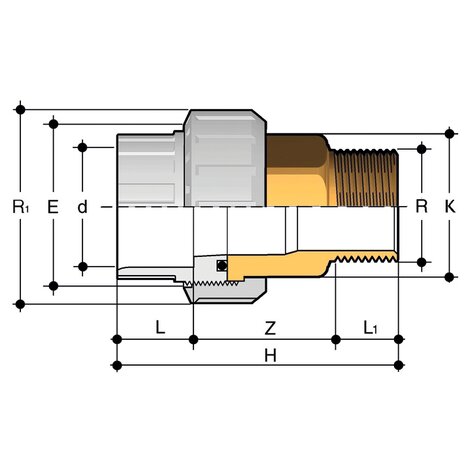

| Objednací číslo | Materiál | Kategorie | product.detail.attribute.d x R | product.detail.attribute.R[5:1] | PN | E | H | product.detail.attribute.K | L | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BIROC016038E | PVC-C system | Tvarovky | 16 x 3/8" | 3/4" | 16 | 33 | 58,5 | 20 | 14 | 10,5 | 34 | 81 |
| BIROC020012E | PVC-C system | Tvarovky | 20 x 1/2" | 1" | 16 | 41 | 65 | 25 | 16 | 13,5 | 35,5 | 133,5 |
| BIROC025034E | PVC-C system | Tvarovky | 25 x 3/4" | 1"1/4 | 16 | 50 | 72,5 | 32 | 19 | 15 | 38,5 | 223 |
| BIROC032100E | PVC-C system | Tvarovky | 32 x 1" | 1"1/2 | 16 | 58 | 80 | 38 | 22 | 17,5 | 40,5 | 294 |
| BIROC040114E | PVC-C system | Tvarovky | 40 x 1"1/4 | 2" | 16 | 72 | 91 | 48 | 26 | 19,5 | 45,5 | 558 |
| BIROC050112E | PVC-C system | Tvarovky | 50 x 1"1/2 | 2"1/4 | 16 | 79 | 101 | 55 | 31 | 19,5 | 50,5 | 696 |
| BIROC063200E | PVC-C system | Tvarovky | 63 x 2" | 2"3/4 | 16 | 98 | 122,5 | 69 | 38 | 24 | 60,5 | 1196 |
