BIGF
FITTINGS FOR SOCKET WELDING - UNIONS

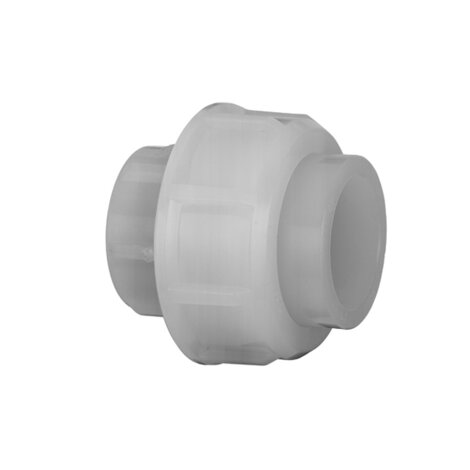

Union for socket welding
Series of fittings designed for conveying fluids under pressure with a hot weld connection system (socket welding).

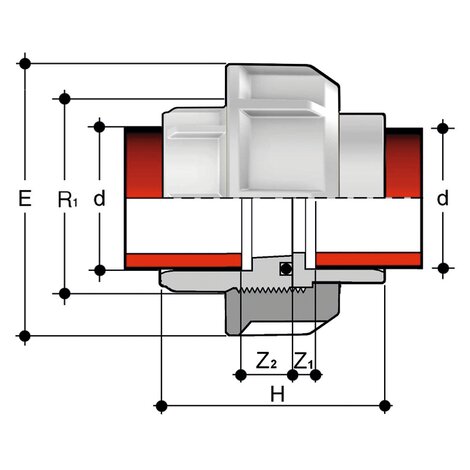

| Objednací číslo | Materiál | Kategorie | d | product.detail.attribute.R[5:1] | PN | E | H | product.detail.attribute.Z1 | Z2 | g |
|---|---|---|---|---|---|---|---|---|---|---|
| BIGF020F | PVDF system | Tvarovky | 20 | 1" | 16 | 47 | 45,5 | 12 | 5,5 | 59 |
| BIGF025F | PVDF system | Tvarovky | 25 | 1"1/4 | 16 | 58 | 49,5 | 12 | 5,5 | 99 |
| BIGF032F | PVDF system | Tvarovky | 32 | 1"1/2 | 16 | 65 | 53,5 | 12 | 5,5 | 141 |
| BIGF040F | PVDF system | Tvarovky | 40 | 2" | 16 | 78 | 59,5 | 14 | 5,5 | 218 |
| BIGF050F | PVDF system | Tvarovky | 50 | 2"1/4 | 16 | 85 | 67,5 | 16 | 5,5 | 290 |
| BIGF063F | PVDF system | Tvarovky | 63 | 2"3/4 | 16 | 103 | 79,5 | 20 | 5,5 | 476 |
