BIFXF
ADAPTOR FOR SOCKET WELDING - UNIONS

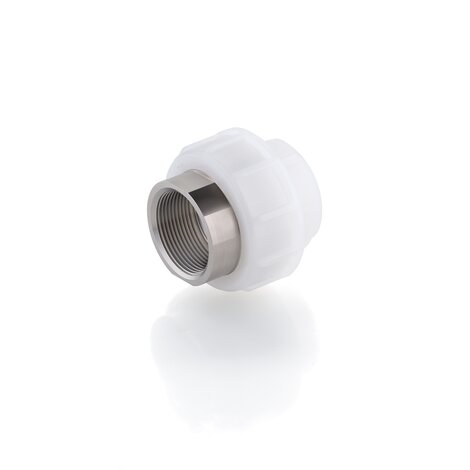

Adaptor union in PVDF/STAINLESS steel for socket welding (d), BSP (R) threaded A316L STAINLESS steel female end with O-Ring in FKM
Series of fittings designed for conveying fluids under pressure with a hot thread and weld connection system (socket welding).

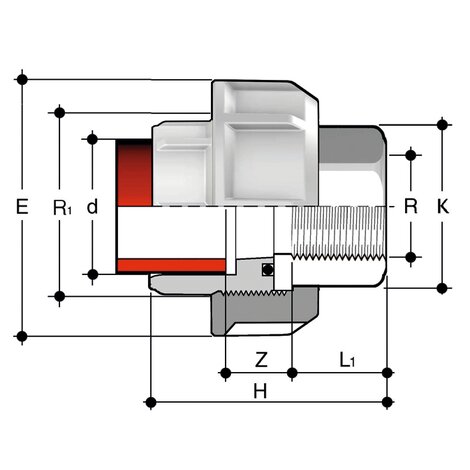

| Objednací číslo | Materiál | Kategorie | product.detail.attribute.d x R | product.detail.attribute.R[5:1] | PN | E | H | product.detail.attribute.K | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BIFXF020012F | PVDF system | Tvarovky | 20 x 1/2" | 1" | 16 | 47 | 48,5 | 25 | 16,5 | 18 | 139 |
| BIFXF025034F | PVDF system | Tvarovky | 25 x 3/4" | 1"1/4 | 16 | 58 | 53,5 | 32 | 18,5 | 19 | 242 |
| BIFXF032100F | PVDF system | Tvarovky | 32 x 1" | 1"1/2 | 16 | 65 | 57,5 | 38 | 19,5 | 20 | 333 |
| BIFXF040114F | PVDF system | Tvarovky | 40 x 1"1/4 | 2" | 16 | 78 | 64,5 | 48 | 21,5 | 23 | 558 |
| BIFXF050112F | PVDF system | Tvarovky | 50 x 1"1/2 | 2"1/4 | 16 | 85 | 78,5 | 55 | 23 | 32,5 | 700 |
| BIFXF063200F | PVDF system | Tvarovky | 63 x 2" | 2"3/4 | 16 | 103 | 85,5 | 69 | 27 | 31,5 | 1200 |
