BBM-C

FITTINGS FOR BUTT WELDING - UNIONS

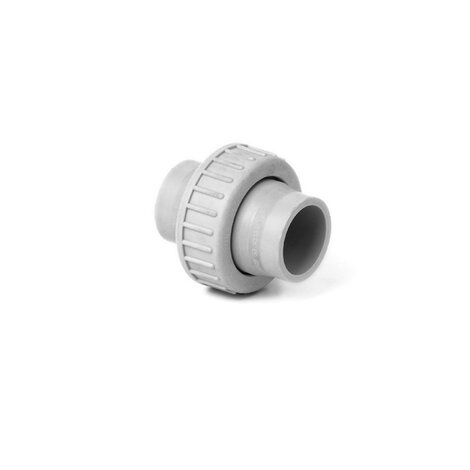

Short spigot union for butt welding with seal in EPDM or FKM
Series of fittings designed for conveying fluids under pressure with a weld connection system (butt welding).
Zpět Produktový list
BBM-C

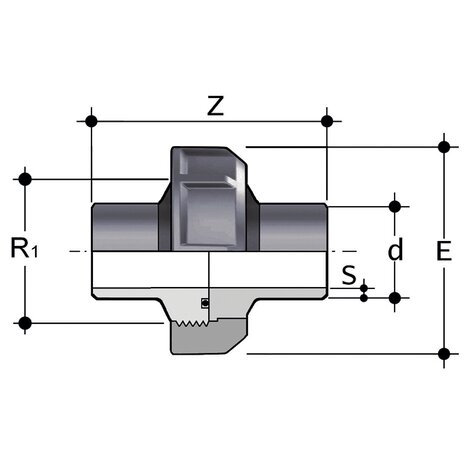

Objednací číslo product.detail.attribute.system Kategorie product.detail.attribute.d DN product.detail.attribute.E S Z product.detail.attribute.g
BBMC11020E PP-H system Tvarovky 20 15 46 1,9 110 80
BBMC11025E PP-H system Tvarovky 25 20 56 2,3 110 75
BBMC11032E PP-H system Tvarovky 32 25 66 2,9 110 120
BBMC11040E PP-H system Tvarovky 40 32 79 3,7 110 175
BBMC11050E PP-H system Tvarovky 50 40 87 4,6 110 240
BBMC11063E PP-H system Tvarovky 63 50 107 5,8 110 440
