VKRNV/CE 24 V AC/DC 4-20 mA - ELECTRICALLY ACTUATED DUAL BLOCK® REGULATING BALL VALVE

2 way 2 way DUAL BLOCK® regulating ball valve with female ends, NPT thread with electric modulating actuator 24 V AC/DC
The VKR DUAL BLOCK® valve combines high reliability and safety aspects typical of VKD full bore ball valves with the new flow adjustment function with typical linear curve that meets the most stringent needs typical of industrial applications.
In addition to the manually actuated version, VKR is also available in electrically actuated VKR/CE configuration. Actuators are firmly connected to the valve by the special FIP Power Quick modules fully made of PP-GR technopolymer. VKR/CE are constructed with actuators meeting current regulations and selected by FIP according to their quality and reliability requirements. The efficiency of these valves, tested according to the company’s quality standards, is guaranteed by the expertise and know-how that FIP dedicates to manufacturing its products.

Další charakteristika:

  • Electric modulating actuator constructed according to FIP specifications; with plastic shell and standard emergency override. Available with voltages from 12 to 240V with 4-20mA and 0-10 V input.
  • High surface finish stem with double O-Ring. The double connection key system guarantees solid and reliable actuator torque transmission to the ball.
  • Easy to install PowerQuick module for pneumatic or electric actuator fully made of highly robust technopolymer.
  • The patented ball design provides linear flow regulation throughout its range of operation even when the valve is open just a few degrees and guarantees minimum pressure drops.
  • Patented DUAL BLOCK® system: prevents union nuts from loosening even under extreme operating conditions: e.g. vibration or thermal expansion.
Zpět Produktový list

EPDM

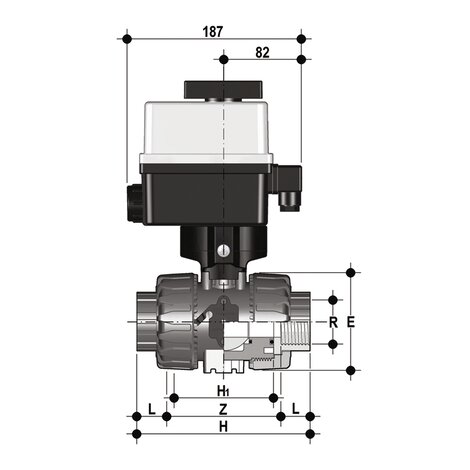

Objednací číslo product.detail.attribute.R DN product.detail.attribute.PN product.detail.attribute.E product.detail.attribute.H product.detail.attribute.H1 L Z product.detail.attribute.B product.detail.attribute.B1 product.detail.attribute.g
VKRNVEL038E0E 3/8” 10 16 54 103 65 13,7 75,6 205 29 1785
VKRNVEL012E0E 1/2” 15 16 54 111 65 17,8 75,4 205 29 1775
VKRNVEL034E0E 3/4” 20 16 65 117 70 18 81 216 34.5 1903
VKRNVEL100E0E 1” 25 16 73 135 78 22,6 89,8 221 39 2011
VKRNVEL114E0E 1” 1/4 32 16 86 153 88 25,1 102,8 238 46 2369
VKRNVEL112E0E 1” 1/2 40 16 98 156 93 24,7 106,6 244 52 2601
VKRNVEL200E0E 2” 50 *10 122 186 111 29,6 126,8 261 62 3218
VKRNVEL038F0E 3/8” 10 16 54 103 65 13,7 75,6 205 29 1785
VKRNVEL012F0E 1/2” 15 16 54 111 65 17,8 75,4 205 29 1775
VKRNVEL034F0E 3/4” 20 16 65 117 70 18 81 216 34.5 1903
VKRNVEL100F0E 1” 25 16 73 135 78 22,6 89,8 221 39 2011
VKRNVEL114F0E 1” 1/4 32 16 86 153 88 25,1 102,8 238 46 2369
VKRNVEL112F0E 1” 1/2 40 16 98 156 93 24,7 106,6 244 52 2601
VKRNVEL200F0E 2” 50 *10 122 186 111 29,6 126,8 261 62 3218
  • Joint system for solvent welding (PVC-U only), for welding (PP-H and PVDF only), for threading and flanging
  • Patented SEAT STOP® ball carrier system that lets you micro-adjust ball seats and minimise the axial force effect.
  • Easy radial disassembly allowing quick replacement of O-rings and ball seats without any need for tools
  • Radial dismounting valve body (True Union) made for PVC-U, PVC-C and PVDF-H injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of disassembling downstream pipes with the valve in the closed position
  • High surface finish stem with double O-Ring and double groove ball connection
  • Integrated bracket for valve anchoring
  • Ball seat carrier can be adjusted using the Easytorque adjustment kit
  • Actuation option: version with electric modulating actuator with 4-20 mA / 0-10 V inlet and 4-20 mA / 0-10 V outlet to monitor the position
  • Valve suitable for carrying fluids that are clean and free of suspended particles.
