VKDOM - DUAL BLOCK® 2-way ball valve
DUAL BLOCK® 2-way ball valve with fixed flanges, drilled EN/ISO/DIN PN 10/16. Face to face according to EN 558-1
FIP has developed a VKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design. VKD is a True Union ball valve that meets the most stringent needs$required by industrial applications.
Další charakteristika:
- Ergonomic HIPVC handle equipped with removable tool to adjust the ball seat carrier.
- Handle lock 0°- 90° SHKD (available as an accessory) ergonomically operable during service and padlockable
- Robust integrated bracket for valve anchoring, for easy and quick automation even after valve installation on the system via the Power Quick module (optional)
- DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
- Machined high surface finish ball that guarantees a smooth operation and increased reliability
EPDM

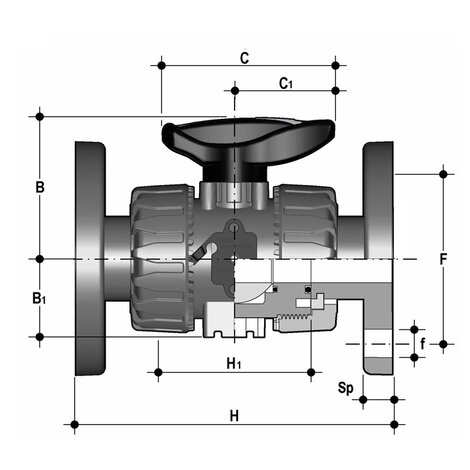

| Objednací číslo | d | DN | PN | B | B (5:1) | C | C (5:1) | product.detail.attribute.F | product.detail.attribute.f | H | H (5:1) | product.detail.attribute.Sp | product.detail.attribute.U | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VKDOM020E | 20 | 15 | 10 | 54 | 29 | 67 | 40 | 65 | 14 | 130 | 65 | 11 | 4 | 387 |
| VKDOM025E | 25 | 20 | 10 | 65 | 34,5 | 85 | 49 | 75 | 14 | 150 | 70 | 14 | 4 | 504 |
| VKDOM032E | 32 | 25 | 10 | 69,5 | 39 | 85 | 49 | 85 | 14 | 160 | 78 | 14 | 4 | 697 |
| VKDOM040E | 40 | 32 | 10 | 82,5 | 46 | 108 | 64 | 100 | 18 | 180 | 88 | 14 | 4 | 1075 |
| VKDOM050E | 50 | 40 | 10 | 89 | 52 | 108 | 64 | 110 | 18 | 200 | 93 | 16 | 4 | 1346 |
| VKDOM063E | 63 | 50 | 10 | 108 | 62 | 134 | 76 | 125 | 18 | 230 | 111 | 16 | 4 | 2060 |
FKM
| Objednací číslo | d | DN | PN | B | B (5:1) | C | C (5:1) | product.detail.attribute.F | product.detail.attribute.f | H | H (5:1) | product.detail.attribute.Sp | product.detail.attribute.U | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VKDOM020F | 20 | 15 | 10 | 54 | 29 | 67 | 40 | 65 | 14 | 130 | 65 | 11 | 4 | 387 |
| VKDOM025F | 25 | 20 | 10 | 65 | 34,5 | 85 | 49 | 75 | 14 | 150 | 70 | 14 | 4 | 504 |
| VKDOM032F | 32 | 25 | 10 | 69,5 | 39 | 85 | 49 | 85 | 14 | 160 | 78 | 14 | 4 | 697 |
| VKDOM040F | 40 | 32 | 10 | 82,5 | 46 | 108 | 64 | 100 | 18 | 180 | 88 | 14 | 4 | 1075 |
| VKDOM050F | 50 | 40 | 10 | 89 | 52 | 108 | 64 | 110 | 18 | 200 | 93 | 16 | 4 | 1346 |
| VKDOM063F | 63 | 50 | 10 | 108 | 62 | 134 | 76 | 125 | 18 | 230 | 111 | 16 | 4 | 2060 |
- Connection system for solvent weld, threaded and flanged joints
- Patented SEAT STOP® ball carrier system that lets you micro-adjust ball seats and minimise the axial force effect
- Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
- PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
- Option of dismounting downstream pipes with the valve in the closed position
- Floating full bore ball with high surface finish
- Integrated bracket for valve anchoring
- Ball seat carriers can be adjusted using the Easytorque adjustment kit
- Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
