VKDOAM - DUAL BLOCK® 2-way ball valve

DUAL BLOCK® ball valve with ANSI B16.5 cl.150#FF fixed flanges *
FIP has developed a VKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design. VKD is a True Union ball valve that meets the most stringent needs$required by industrial applications. This valve is also equipped with a customisable Labelling System.

Další charakteristika:

  • HIPVC ergonomic multifunctional handle for quick operation, lock and graduated adjustment in 10 positions. Possibility of inhibiting rotation with a lock
  • Customisable Labelling System: LCE module made of a transparent protection plug and customisable tag holder using the LSE set (available as accessory). The customisation lets you identify the valve on the system according to specific needs
  • DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
  • Double stem with double O-Rings for ball centring and operating torque reduction
  • Machined high surface finish ball that guarantees a smooth operation and increased reliability
Zpět Produktový list

EPDM

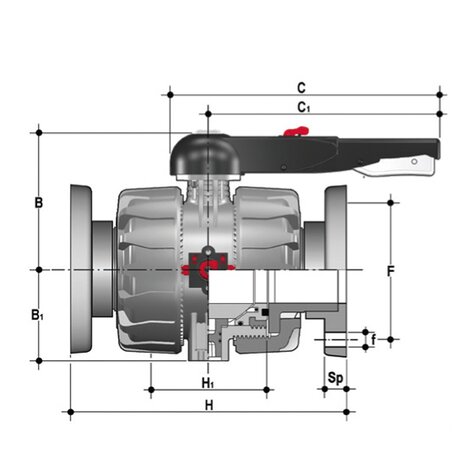

Objednací číslo product.detail.attribute.d DN product.detail.attribute.PN product.detail.attribute.B product.detail.attribute.B[5:1] product.detail.attribute.C product.detail.attribute.C[5:1] product.detail.attribute.F product.detail.attribute.f product.detail.attribute.H product.detail.attribute.H1 product.detail.attribute.Sp product.detail.attribute.U product.detail.attribute.g
VKDOM075E 2"1/2 65 10 164 87 225 175 145 17 290 133 24 4 4500
VKDOM090E 3" 80 10 177 105 327 272 160 17 310 149 25 8 6455
VKDOM110E 4" 100 10 195 129 385 330 180 17 350 167 25 8 9090

FKM

Objednací číslo product.detail.attribute.d DN product.detail.attribute.PN product.detail.attribute.B product.detail.attribute.B[5:1] product.detail.attribute.C product.detail.attribute.C[5:1] product.detail.attribute.F product.detail.attribute.f product.detail.attribute.H product.detail.attribute.H1 product.detail.attribute.Sp product.detail.attribute.U product.detail.attribute.g
VKDOM075F 2"1/2 65 10 164 87 225 175 145 17 290 133 24 4 4500
VKDOM090F 3" 80 10 177 105 327 272 160 17 310 149 25 8 6455
VKDOM110F 4" 100 10 195 129 385 330 180 17 350 167 25 8 9090
  • Connection system for solvent weld, threaded and flanged joints
  • Patented SEAT STOP® ball carrier system that lets you micro-adjust seals and minimise axial force effects
  • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
  • PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of dismounting downstream pipes with the valve in the closed position
  • Full bore ball with high surface finish
  • Integrated bracket for valve anchoring
  • Possibility of installing a manual reducer or pneumatic and/or electric actuators by applying an ISO standard bore PP-GR flange
  • STAINLESS steel co-moulded stem, with square section as per ISO 5211
  • Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
