VKDIV/CE 24 V AC/DC - ELECTRICALLY ACTUATED DUAL BLOCK® 2-WAY BALL VALVE

DUAL BLOCK® ball valve with female ends for solvent welding, metric series with electric actuator 24 V AC/DC
FIP has developed a VKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design. VKD is a True Union ball valve that meets the most stringent needs required by industrial applications.
In addition to the manually actuated version, VKD is also available in VKD/CE electrically actuated and VKD/CP pneumatically actuated configurations. Actuators are firmly connected to the valve by the special FIP Power Quick modules fully made of PP-GR technopolymer. VKD/CE and VKD/CP are constructed with actuators meeting current regulations and selected by FIP according to their quality and reliability requirements. The efficiency of these valves, tested according to the company’s quality standards, is guaranteed by the expertise and know-how that FIP dedicates to manufacturing its products.

Další charakteristika:

  • Electric actuator constructed according to FIP specifications; with plastic shell and standard emergency override. Available with voltages from 12 to 240V.
  • Rack & pinion type pneumatic actuator constructed according to FIP specifications: fully protected against weather corrosion available in double-acting (DA) or simple-acting normally closed (NC) or normally open (NO) versions.
  • DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation.
  • Double stem with double O-Rings for ball centring and operating torque reduction. The upper stem is also equipped with a co-moulded steel insert that guarantees high durability and perfect torque transmission between the actuator and ball.
Zpět Produktový list
VKDIV/CE 24 V AC/DC - ELECTRICALLY ACTUATED DUAL BLOCK® 2-WAY BALL VALVE
VKDIV/CE 24 V AC/DC - ELECTRICALLY ACTUATED DUAL BLOCK® 2-WAY BALL VALVE
VKDIV/CE 24 V AC/DC - ELECTRICALLY ACTUATED DUAL BLOCK® 2-WAY BALL VALVE
VKDIV/CE 24 V AC/DC - ELECTRICALLY ACTUATED DUAL BLOCK® 2-WAY BALL VALVE

EPDM

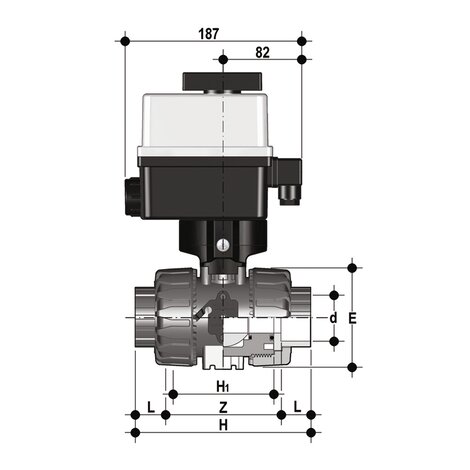

Objednací číslo d DN PN E H product.detail.attribute.H1 L Z B product.detail.attribute.B1 g
VKDIVEL016E 16 10 16 54 103 65 14 75 205 29 1785
VKDIVEL020E 20 15 16 54 103 65 16 71 205 29 1775
VKDIVEL025E 25 20 16 65 115 70 19 77 216 34.5 1903
VKDIVEL032E 32 25 16 73 128 78 22 84 221 39 2011
VKDIVEL040E 40 32 16 86 146 88 26 94 238 46 2369
VKDIVEL050E 50 40 16 98 164 93 31 102 244 52 2601
VKDIVEL063E 63 50 *10 122 199 111 38 123 261 62 3218

FKM

Objednací číslo d DN PN E H product.detail.attribute.H1 L Z B product.detail.attribute.B1 g
VKDIVEL016F 16 10 16 54 103 65 14 75 205 29 1785
VKDIVEL020F 20 15 16 54 103 65 16 71 205 29 1775
VKDIVEL025F 25 20 16 65 115 70 19 77 216 34.5 1903
VKDIVEL032F 32 25 16 73 128 78 22 84 221 39 2011
VKDIVEL040F 40 32 16 86 146 88 26 94 238 46 2369
VKDIVEL050F 50 40 16 98 164 93 31 102 244 52 2601
VKDIVEL063F 63 50 *10 122 199 111 38 123 261 62 3218
  • Sistema di giunzione per incollaggio (solo PVC-U e PVC-C), per saldatura (solo PP-H e PVDF), per filettatura e per flangiatura
  • Sistema di supporto della sfera brevettato SEAT STOP®, che consente di effettuare una micro-registrazione delle tenute e di minimizzare l’effetto delle spinte assiali
  • Facile smontaggio radiale dall’impianto e conseguente rapida sostituzione degli O-Ring e delle guarnizioni della sfera senza l’impiego di alcun attrezzo
  • Corpo valvola a smontaggio radiale (True union) realizzato per stampaggio ad iniezione in PVC-U, PVC-C, PP-H o PVDF dotato di foratura integrata per l’attuazione.
  • Requisiti di prova in accordo ISO 9393 Possibilità di smontaggio delle tubazioni a valle con la valvola in posizione di chiusura
  • Sfera a passaggio totale di tipo flottante ad alta finitura superficiale
  • Supporto integrato nel corpo per il fissaggio della valvola La regolazione del supporto della sfera può essere effettuata tramite il kit di regolazione Easytorque.
