TIMC

ADAPTOR FITTINGS
90° Tee with reinforced solvent weld socket d and BSP threaded female end R with STAINLESS steel reinforcing ring
Series of fittings designed for conveying fluids under pressure with threaded and cold chemical solvent weld jointing systems (solvent welding) using suitable solvent cement (TemperGLUE WELD-ON) and cleaner-primer.
Zpět Produktový list

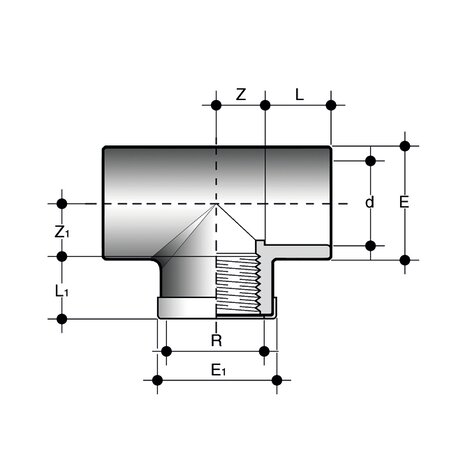

Disegno tecnico del raccordo raccordi di passaggio TIMV
Objednací číslo product.detail.attribute.d x R PN E product.detail.attribute.E[5:1] L L Z product.detail.attribute.Z[5:1] g
TIMC016038 16 x 3/8" 16 23,5 24,5 14 11,4 9 11 25
TIMC020012 20 x 1/2" 16 28,5 29,5 16 15 12 13 40
TIMC025034 25 x 3/4" 16 35 36 19 16,3 15 17 63
TIMC032100 32 x 1" 16 43 44 22 19,1 18 21 118
TIMC040114 40 x 1"1/4 16 50 51 26 21,4 21,5 27 137
TIMC050112 50 x 1"1/2 16 61 62 31 21,4 27 37 231
TIMC063200 63 x 2" 16 76 77 38 25,7 33,5 46 457
