RVUOC - SEDIMENT STRAINER
Sediment strainer with fixed flanges, drilled EN/ISO/DIN PN10/16.
The RV Sediment strainer limits the passage of any solid particles present in the fluid by means of a strainer.
EPDM

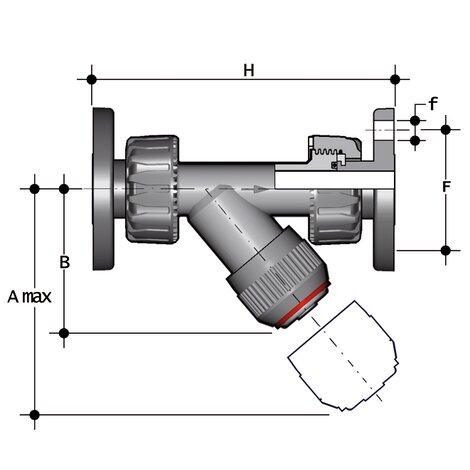

| Objednací číslo | d | DN | PN | product.detail.attribute.A max | B | product.detail.attribute.F | product.detail.attribute.f | H | g |
|---|---|---|---|---|---|---|---|---|---|
| RVUOC020E | 20 | 15 | 16 | 125 | 72 | 65 | 14 | 163 | 360 |
| RVUOC025E | 25 | 20 | 16 | 145 | 84 | 75 | 14 | 193 | 495 |
| RVUOC032E | 32 | 25 | 16 | 165 | 95 | 85 | 14 | 211 | 660 |
| RVUOC040E | 40 | 32 | 16 | 190 | 111 | 100 | 18 | 244 | 1000 |
| RVUOC050E | 50 | 40 | 16 | 210 | 120 | 110 | 18 | 277 | 1320 |
| RVUOC063E | 63 | 50 | 16 | 240 | 139 | 125 | 18 | 331 | 1910 |
FKM
| Objednací číslo | d | DN | PN | product.detail.attribute.A max | B | product.detail.attribute.F | product.detail.attribute.f | H | g |
|---|---|---|---|---|---|---|---|---|---|
| RVUOC020F | 20 | 15 | 16 | 125 | 72 | 65 | 14 | 163 | 360 |
| RVUOC025F | 25 | 20 | 16 | 145 | 84 | 75 | 14 | 193 | 495 |
| RVUOC032F | 32 | 25 | 16 | 165 | 95 | 85 | 14 | 211 | 660 |
| RVUOC040F | 40 | 32 | 16 | 190 | 111 | 100 | 18 | 244 | 1000 |
| RVUOC050F | 50 | 40 | 16 | 210 | 120 | 110 | 18 | 277 | 1320 |
| RVUOC063F | 63 | 50 | 16 | 240 | 139 | 125 | 18 | 331 | 1910 |
- Connection system for solvent weld, threaded and flanged joints
- Strainer mounted on an easily removed support that facilitates the cleaning or replacement
- Valve material compatibility (PVC-C) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
