RVUIM - Sediment strainer

Sediment strainer with female union ends for socket welding, metric series
The RV Sediment strainer limits the passage of any solid particles present in the fluid by means of a strainer.
Zpět Produktový list

EPDM

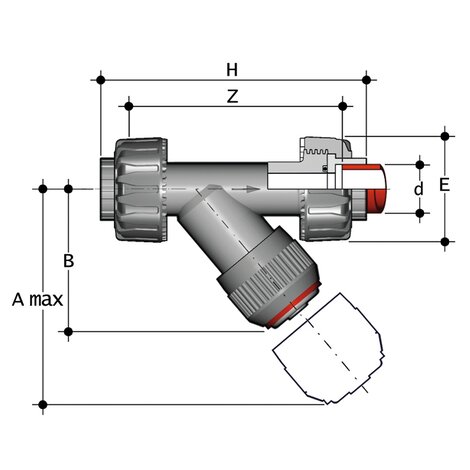

Objednací číslo d DN PN product.detail.attribute.A max B E H Z product.detail.attribute.Fig. g
RVUIM020E 20 15 10 125 71 55 138 109 A 148
RVUIM025E 25 20 10 145 83 66 157 125 A 195
RVUIM032E 32 25 10 165 94 74 179 143 A 297
RVUIM040E 40 32 10 190 109 86 205 164 A 475
RVUIM050E 50 40 10 210 119 99 244 197 A 675
RVUIM063E 63 50 10 240 142,5 120 294 239 A 1100

FKM

Objednací číslo d DN PN product.detail.attribute.A max B E H Z product.detail.attribute.Fig. g
RVUIM020F 20 15 10 125 71 55 138 109 A 148
RVUIM025F 25 20 10 145 83 66 157 125 A 195
RVUIM032F 32 25 10 165 94 74 179 143 A 297
RVUIM040F 40 32 10 190 109 86 205 164 A 475
RVUIM050F 50 40 10 210 119 99 244 197 A 675
RVUIM063F 63 50 10 240 142,5 120 294 239 A 1100
  • Connection system for weld, threaded and flanged joints
  • Strainer assembled on an easily removed support that facilitates cleaning or replacement
  • Valve material compatibility (PP-H) with water conveyance, drinking water and other food substances according to current regulations
  • Can be maintained with the valve body installed
