Q/BRX
ADAPTOR FOR SOCKET WELDING - SS A316L UNION ENDS
Union end in A316L STAINLESS steel with male BSP thread
Series of fittings designed for conveying fluids under pressure with a hot thread and weld connection system (socket welding).

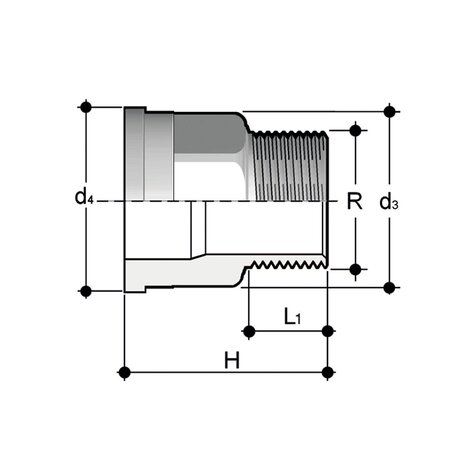

| Objednací číslo | product.detail.attribute.R | product.detail.attribute.d[5:3] | product.detail.attribute.d[5:4] | H | L | g |
|---|---|---|---|---|---|---|
| QBRX012 | 1/2" | 27,5 | 30,1 | 39 | 13,5 | 95 |
| QBRX034 | 3/4" | 36 | 38,8 | 43,5 | 15 | 166 |
| QBRX038 | 3/8" | 22 | 24 | 34,5 | 10,5 | 58 |
| QBRX100 | 1" | 41,5 | 44,7 | 48 | 17,5 | 226 |
| QBRX112 | 1"1/2 | 59 | 62,6 | 56 | 19,5 | 491 |
| QBRX114 | 1"1/4 | 53 | 56,5 | 53 | 19,5 | 393 |
| QBRX200 | 2" | 74 | 78,4 | 65,5 | 24 | 843 |
