Q/BRO
ADAPTOR FOR SOCKET WELDING - BRASS UNION ENDS
Union end in brass with BSP male thread
Series of fittings designed for conveying fluids under pressure with a hot thread and weld connection system (socket welding).

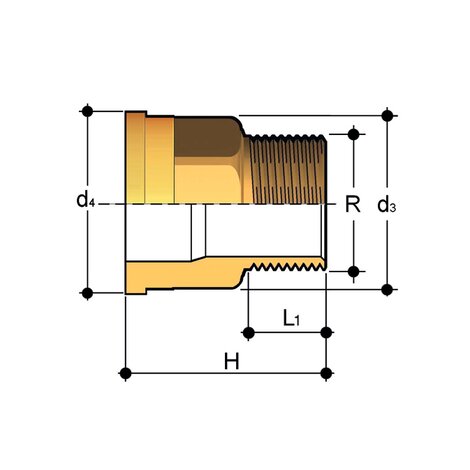

| Objednací číslo | product.detail.attribute.R | product.detail.attribute.d[5:3] | product.detail.attribute.d[5:4] | H | L | g |
|---|---|---|---|---|---|---|
| QBRO012 | 1/2" | 27,5 | 30,1 | 39 | 13,5 | 105 |
| QBRO034 | 3/4" | 36 | 38,8 | 43,5 | 15 | 184 |
| QBRO038 | 3/8" | 22 | 24 | 34,5 | 10,5 | 64 |
| QBRO100 | 1" | 41,5 | 44,7 | 48 | 17,5 | 251 |
| QBRO112 | 1"1/2 | 59 | 62,6 | 56 | 19,5 | 545 |
| QBRO114 | 1"1/4 | 53 | 56,5 | 53 | 19,5 | 437 |
| QBRO200 | 2" | 74 | 78,4 | 65,5 | 24 | 937 |
