Q/BBM-C
FITTINGS FOR BUTT WELDING - UNIONS
Short spigot PP-H end connectors for butt welding
Series of fittings designed for conveying fluids under pressure with a weld connection system (butt welding).

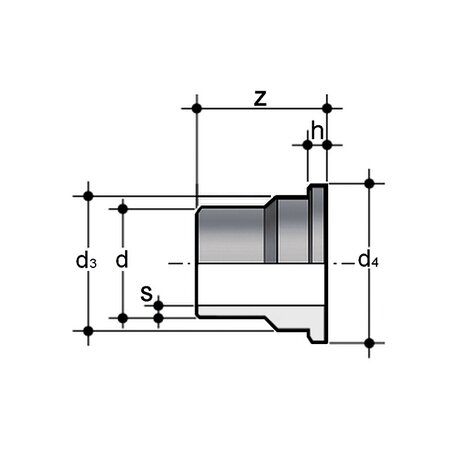

| Objednací číslo | product.detail.attribute.d | product.detail.attribute.d[5:3] | product.detail.attribute.d[5:4] | product.detail.attribute.h | S | Z | product.detail.attribute.g |
|---|---|---|---|---|---|---|---|
| QBBMC11020 | 20 | 27,4 | 30 | 5 | 1,9 | 55 | 20 |
| QBBMC11025 | 25 | 35,9 | 38,7 | 6 | 2,3 | 55 | 22 |
| QBBMC11032 | 32 | 41,4 | 44,6 | 6 | 2,9 | 55 | 36 |
| QBBMC11040 | 40 | 52,8 | 56,4 | 7 | 3,7 | 55 | 54 |
| QBBMC11050 | 50 | 58,8 | 62,5 | 7 | 4,6 | 55 | 76 |
| QBBMC11063 | 63 | 73,8 | 78,3 | 8 | 5,8 | 55 | 118 |
