PSKD

DUAL BLOCK® SERIES BALL VALVES DN 10÷50

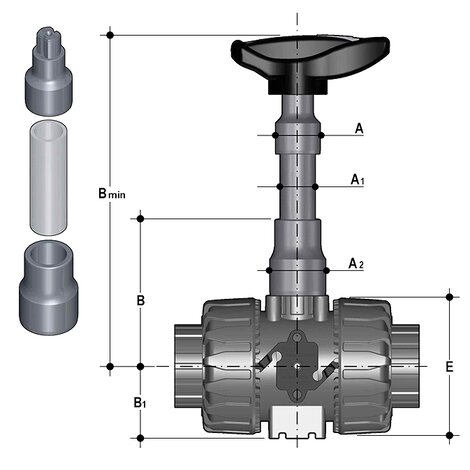

Stem extension
MAGNUM 3G is completed with a range of tools and accessories to help the installer

Další charakteristika:

  • Upper part (PVC-U)
  • Bottom part (PVC-U)
  • Bolts (zinc plated steel)
  • Nuts (zinc plated steel )
  • Gasket (NBR)
  • Reinforcing ring (Stainless steel)
Zpět Produktový list
PSKD
Objednací číslo d DN product.detail.attribute.A product.detail.attribute.A[5:1] product.detail.attribute.A[5:2] E B B (5:1) product.detail.attribute.B [5:min] product.detail.attribute.Ø pipe product.detail.attribute.to be used with:
PSKD020 20 15 32 25 32 54 70 29 139,5 25 VKD-TKD
PSKD025 25 20 32 25 40 65 89 34,5 164,5 25 VKD-TKD
PSKD032 32 25 32 25 40 73 93,5 39 169 25 VKD-TKD
PSKD040 40 32 40 32 50 86 110 46 200 32 VKD-TKD
PSKD050 50 40 40 32 50 98 116 52 206 32 VKD-TKD
PSKD063 63 50 40 32 59 122 122 62 225 32 VKD-TKD
  • The reinforcing bush are used to reinforce the pipe PE100 (SDR11) e PE-X, to elong the lifetime of the pipeline and to reduce the collapse risk of the pipe in disadvantages conditions. They use is particurarly suggested using PE-X pipes. The two tightening keys (d.16-63 and d.75-110) are important tools to install the MAGNUM 3G fittings
