OAB
FLANGES - ANSI SERIES
Steel core backing ring, PP/FRP coated, according to ANSI B16.5 cl.150 for stubs QBM and QBAM
Series of fittings designed for conveying fluids under pressure with a weld connection system (butt welding).

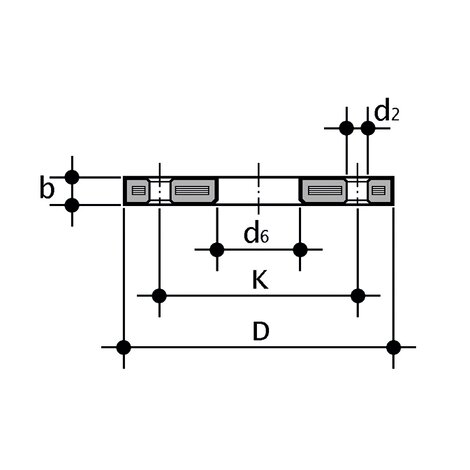

| Objednací číslo | product.detail.attribute.d (pollici) | DN | product.detail.attribute.*PMA (bar) | product.detail.attribute.b | product.detail.attribute.d2 mm | product.detail.attribute.d2 inch | product.detail.attribute.d[5:6] | D | product.detail.attribute.kmm | product.detail.attribute.k inch | product.detail.attribute.n | product.detail.attribute.**(Nm) | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OAB012 | 1/2” | 15 | 16 | 12 | 16 | 5/8” | 28 | 95 | 60.45 | 2” 3/8 | 4 | 15 | 200 |
| OAB034 | 3/4” | 20 | 16 | 12 | 16 | 5/8” | 34 | 102 | 69.89 | 2” 3/4 | 4 | 15 | 240 |
| OAB100 | 1” | 25 | 16 | 16 | 16 | 5/8” | 42 | 114 | 79.25 | 3” 1/8 | 4 | 15 | 490 |
| OAB112 | 1” 1/2 | 40 | 16 | 18 | 16 | 5/8” | 62 | 133 | 98.55 | 3” 7/8 | 4 | 35 | 640 |
| OAB114 | 1” 1/4 | 32 | 16 | 16 | 16 | 5/8” | 51 | 130 | 88.9 | 3” 1/2 | 4 | 25 | 670 |
| OAB200 | 2” | 50 | 16 | 18 | 20 | 3/4” | 78 | 162 | 120.65 | 4” 3/4 | 4 | 35 | 1000 |
| OAB212 | 2” 1/2 | 65 | 16 | 18 | 20 | 3/4” | 92 | 184 | 139.69 | 5” 1/2 | 4 | 40 | 1310 |
| OAB300 | 3” | 80 | 16 | 18 | 20 | 3/4” | 111 | 194 | 152.4 | 6” | 4 | 40 | 1250 |
| OAB400 | 4” | 100 | 16 | 18 | 20 | 3/4” | 133 | 229 | 190.5 | 7” 1/2 | 8 | 40 | 1660 |
| OAB600 | 6” | 150 | 16 | 178 | - | - | - | - | - | - | 8 | 60 | 3750 |
| OAB800 | 8” | 200 | 16 | 236 | - | - | - | - | - | - | 8 | 70 | 5140 |
| OAB810 | 10” | 250 | 16 | 288 | - | - | - | - | - | - | 12 | 100 | 8080 |
| OAB812 | 12” | 315 | 16 | 338 | - | - | - | - | - | - | 12 | 110 | 15380 |
| OAB814 | 14" | 350 | 16 | - | - | - | - | - | - | - | - | - | - |
| OAB816 | 16" | 400 | 16 | - | - | - | - | - | - | - | - | - | - |
