O-RING
FITTINGS FOR BUTT WELDING - UNIONS

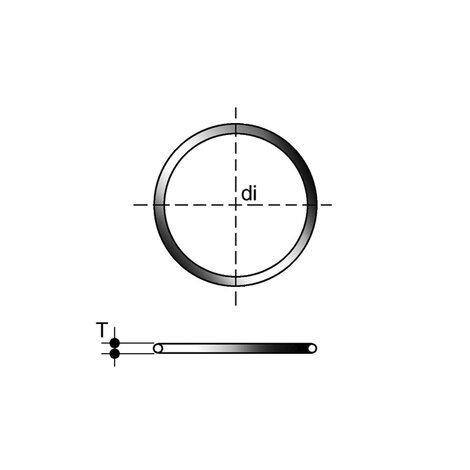

Seals for union types BIGM, BIFGM, BIFOM, BIROM, BIFXM, BIRXM
Series of fittings designed for conveying fluids under pressure with a weld connection system (butt welding).
| Objednací číslo | product.detail.attribute.d union | product.detail.attribute.C | product.detail.attribute.di | product.detail.attribute.T |
|---|---|---|---|---|
| OR3062F | 16 | 3062 | 15,54 | 2,62 |
| OR4081F | 20 | 4081 | 20,22 | 3,53 |
| OR4112F | 25 | 4112 | 28,17 | 3,53 |
| OR4131F | 32 | 4131 | 32,93 | 3,53 |
| OR6162F | 40 | 6162 | 40,65 | 5,34 |
| OR6187F | 50 | 6187 | 47 | 5,34 |
| OR6237F | 63 | 6237 | 59,69 | 5,34 |
| OR6300F | 75 | 6300 | 75,57 | 5,34 |
| OR6362F | 90 | 6362 | 91,45 | 5,34 |
| OR6450F | 110 | 6450 | 113,67 | 5,34 |
