M9.03.PX - M9.03.WX
Dual Flow Monitor and Transmitter
Dual Flow Monitor and Transmitter

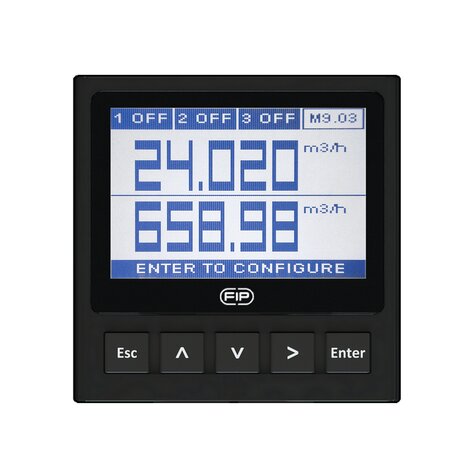

FLS M9.03 is a
powerful dual flow monitor
designed to convert the
frequency signals of FLS flow
sensors into flow rates. M9.03
is equipped with a 4” wide full
graphic display which shows
measured values clearly and a
lot of other useful information.
Moreover, due to a multicolor
display plus a powerful
backlight, measurement status
can be determined easily from
afar also. A tutorial software
guarantees a mistake-proof
and fast set up of every
parameters. Calibrations
can be performed just fixing
installation features or using
a reference value through a
new “in-line calibration”. Two
4-20mA output are available
to remote each flow rate to
an external device. A proper
combination of digital outputs
allows customized setups for
any process to be controlled.
The USB port on the rear
part allows the upgrade of
software offering a wide range
of customization services both
standard and on request.
| Objednací číslo | product.detail.attribute.Mounting | product.detail.attribute.Power supply | product.detail.attribute.Wire power Technology | product.detail.attribute.Sensor Input | product.detail.attribute.Output | product.detail.attribute.Weight (gr.) |
|---|---|---|---|---|---|---|
| M9.03.P1 | Panel | 12 - 24 VCC | 3/4 wire | 2* Flow (Frequency) | 2*(4-20mA) $ 2*(S.S.R.) $ 2* (mech. relay) | 550 |
| M9.03.W1 | Wall | 12 - 24 VCC | 3/4 wire | 2* Flow (Frequency) | 2*(4-20mA) $ 2*(S.S.R.) $ 2* (mech. relay) | 650 |
| M9.03.W2 | Wall | 110 - 230 VCA | 3/4 wire | 2* Flow (Frequency) | 2*(4-20mA) $ 2*(S.S.R.) $ 2* (mech. relay) | 750 |
- APPLICATIONS • Water treatment systems • Industrial waste water treatment and recovery • Water distribution • Filtration systems • Swimming pools & SPA • Irrigation & Fertigation • Leak detection • Cooling water monitoring • Processing and manufacturing industry • Chemical production MAIN FEATURES • Wide full graphic display • Multicolor backlight • Help on board • Delta flow rates visualization • Fast, intuitive and mistake-proof calibration software • Mechanical relays for external device control • Solid State Relays for programmable alarms • Multilanguage menu • USB port for software upgrading
