M9.02.XX

Flow Monitor and Transmitter

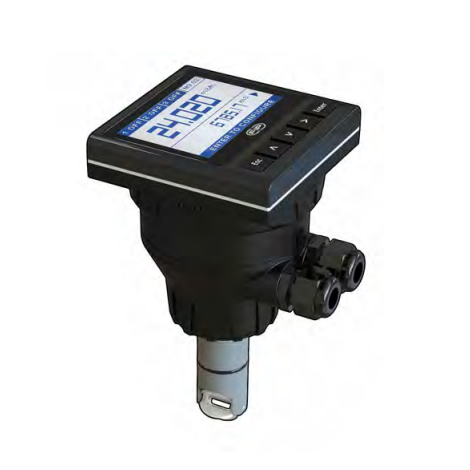

Flow Monitor and Transmitter Field mount
FLS M9.02 is a powerful flow monitor designed to convert the frequency signal of FLS flow sensors into a flow rate. M9.02 is equipped with a wide full graphic display 4” which shows measured values clearly and a lot of other useful information. Moreover, due to a multicolor display plus a powerful backlight, measurement status can be determined easily from afar also. A tutorial software guarantees a mistake-proof and fast set up of every parameters. Calibration can be performed just fixing installation features or using a reference value through a new “in-line calibration”. A 4-20mA output is available to remote flow rate to a external device. A proper combination of digital outputs allows customized setups for any process to be controlled. The USB port on the rear part allows the upgrade of software offering a wide range of customization services both standard and on request
Zpět Produktový list
M9.02.XX
Objednací číslo product.detail.attribute.Power supply product.detail.attribute.Wire power Technology product.detail.attribute.Sensor Input product.detail.attribute.Output Délka product.detail.attribute.Main Wetted Materials
M9.02.01 12 - 24 VCC 3/4 wire Flow (Frequency) 1* (4-20 mA) $ 2* (S.S.R.) $ 1* (mech. relay) L0 C-PVC $ EPDM
M9.02.02 12 - 24 VCC 3/4 wire Flow (Frequency) 1* (4-20 mA) $ 2* (S.S.R.) $ 1* (mech. relay) L0 C-PVC $ FKM
M9.02.03 12 - 24 VCC 3/4 wire Flow (Frequency) 1* (4-20 mA) $ 2* (S.S.R.) $ 1* (mech. relay) L1 C-PVC $ EPDM
M9.02.04 12 - 24 VCC 3/4 wire Flow (Frequency) 1* (4-20 mA) $ 2* (S.S.R.) $ 1* (mech. relay) L1 C-PVC $ FKM
M9.02.05 12 - 24 VCC 3/4 wire Flow (Frequency) 1* (4-20 mA) $ 2* (S.S.R.) $ 1* (mech. relay) L0 PVDF $ EPDM
M9.02.06 12 - 24 VCC 3/4 wire Flow (Frequency) 1* (4-20 mA) $ 2* (S.S.R.) $ 1* (mech. relay) L0 PVDF $ FKM
M9.02.07 12 - 24 VCC 3/4 wire Flow (Frequency) 1* (4-20 mA) $ 2* (S.S.R.) $ 1* (mech. relay) L1 PVDF $ EPDM
M9.02.08 12 - 24 VCC 3/4 wire Flow (Frequency) 1* (4-20 mA) $ 2* (S.S.R.) $ 1* (mech. relay) L1 PVDF $ FKM
M9.02.09 12 - 24 VCC 3/4 wire Flow (Frequency) 1* (4-20 mA) $ 2* (S.S.R.) $ 1* (mech. relay) L0 316L SS $ EPDM
M9.02.10 12 - 24 VCC 3/4 wire Flow (Frequency) 1* (4-20 mA) $ 2* (S.S.R.) $ 1* (mech. relay) L0 316L SS $ FKM
M9.02.11 12 - 24 VCC 3/4 wire Flow (Frequency) 1* (4-20 mA) $ 2* (S.S.R.) $ 1* (mech. relay) L1 316L SS $ EPDM
M9.02.12 12 - 24 VCC 3/4 wire Flow (Frequency) 1* (4-20 mA) $ 2* (S.S.R.) $ 1* (mech. relay) L1 316L SS $ FKM
  • APPLICATIONS • Water treatment systems • Industrial waste water treatment and recovery • Water distribution • Filtration systems • Swimming pools & SPA • Irrigation & Fertigation • Leak detection • Cooling water monitoring • Processing and manufacturing industry • Chemical production MAIN FEATURES • Wide full graphic display • Multicolor backlight • Help on board • Installation flexibility • Fast, intuitive and mistake-proof calibration software • Mechanical relay for external device control • Solid State Relays for programmable alarms • Multilanguage menu • USB port for software upgrading
