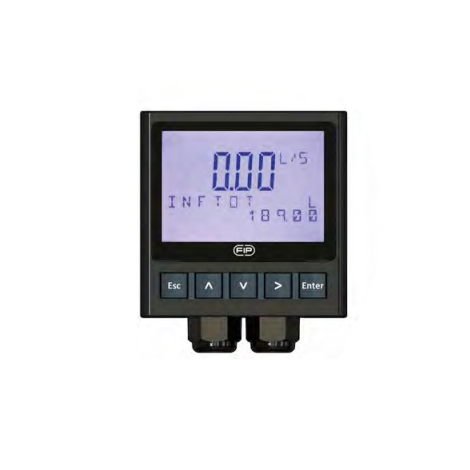

M9.00.PX - M9.00.WX
2-Wires Flow Monitor and Transmitter
2-Wires Flow Monitor and Transmitter
FLS M9.00 is a powerful flow monitor based on 2-wire technology designed to convert the frequency signal of FLS flow sensors into a flow rate. M9.00 is equipped with a wide 4” display which shows measured values clearly. Moreover the standard backlight improves further the display visibility. The first procedure will grant a easy set up of main parameters. A flow rate reference can be used for a recalibration or a alignment through a intuitive “in-line calibration”. A 2 wires 4-20mA output combined with a solid state relay allow to remote instant flow rate as well as an alarm.
| Objednací číslo | product.detail.attribute.Mounting | product.detail.attribute.Power supply | product.detail.attribute.Wire power Technology | product.detail.attribute.Sensor Input | product.detail.attribute.Output | product.detail.attribute.Weight (gr.) |
|---|---|---|---|---|---|---|
| M9.00.P1 | Panel | 12 - 24 VCC | 2 wire | Flow (Frequency) | 1*(4-20mA) $ 1*(S.S.R.) | 500 |
| M9.00.W1 | Wall | 12 - 24 VCC | 2 wire | Flow (Frequency) | 1*(4-20mA) $ 1*(S.S.R.) | 550 |
| M9.00.W2 | Wall | 110 - 230 VCA | 2 wire | Flow (Frequency) | 1*(4-20mA) $ 1*(S.S.R.) | 650 |
- APPLICATIONS • Water treatment systems • Industrial waste water treatment and recovery • Water distribution • Filtration systems • Swimming pools & SPA • Irrigation & Fertigation • Leak detection MAIN FEATURES • Wide display • Bright backlight • Installation flexibility • Solid State Relays for programmable alarms • Multilanguage menu • USB port for software updating
