LKDDM - DUAL BLOCK® 3-way ball valve

DUAL BLOCK® 3-way ball valve with male ends for socket welding, metric series, L-port ball.
FIP has developed a TKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design. TKD is a True Union diverting and mixing ball valve that meets the most stringent needs required in industrial applications.

Další charakteristika:

  • Ergonomic HIPVC handle equipped with removable tool to adjust the ball seat carrier. Possibility of installing the LTKD stroke limiter (available as an accessory) that permits ball and handle rotation only for set opening and closing angles at 90° or 180°
  • Handle lock 0°- 90° SHKD (available as an accessory) ergonomically operable during service and padlockable
  • DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
  • Ball shutter high surface finish with floating type full passage with T or L port
  • 4 PTFE ball seat system that compensates axial force guaranteeing optimal manageability and long working life
Zpět Produktový list

EPDM

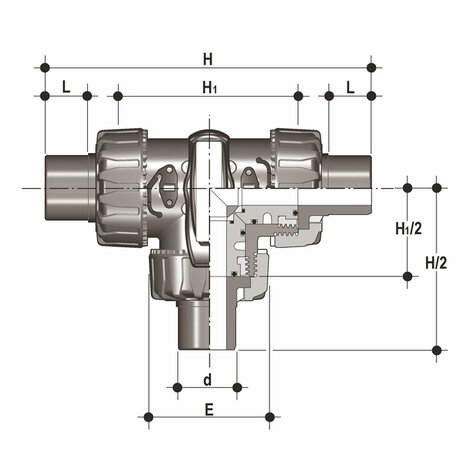

Objednací číslo d DN PN E H H (5:1) L g
LKDDM020E 20 15 10 54 140 80 16 205
LKDDM025E 25 20 10 65 175 100 18 360
LKDDM032E 32 25 10 73 188 110 20 515
LKDDM040E 40 32 10 86 220 131 22 835
LKDDM050E 50 40 10 98 251 148 23 1100
LKDDM063E 63 50 10 122 294 179 29 1830

FKM

Objednací číslo d DN PN E H H (5:1) L g
LKDDM020F 20 15 10 54 140 80 16 205
LKDDM025F 25 20 10 65 175 100 18 360
LKDDM032F 32 25 10 73 188 110 20 515
LKDDM040F 40 32 10 86 220 131 22 835
LKDDM050F 50 40 10 98 251 148 23 1100
LKDDM063F 63 50 10 122 294 179 29 1830
  • Connection system for weld and threaded joints
  • Patented SEAT STOP® ball seat carrier system that lets you micro-adjust ball seats and minimise axial force effects
  • Easy radial disassembly allowing quick replacement of O-rings and ball seats without any need for tools
  • PN10 True Union valve body made for PP-H injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of disassembling downstream pipes with the valve in the closed position
  • High surface finish stem with double O-Ring and double groove ball connection, equipped with optical position indicator for correct handle installation
  • Integrated bracket for valve anchoring
  • Possibility of installing pneumatic and/or electric actuators thanks to the robust integrated bracket for valve anchoring for easy and quick automation using the Power Quick module (optional)
  • Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
