GIMC
ADAPTOR FITTINGS

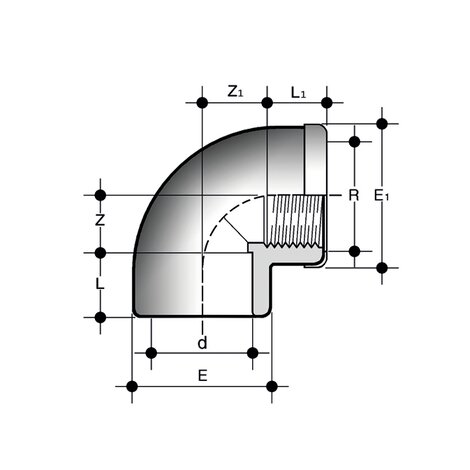

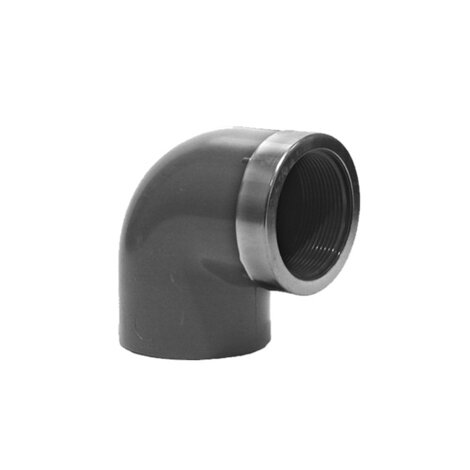

90° elbow with reinforced solvent weld socket d and BSP threaded female end R with STAINLESS steel reinforcing ring
Series of fittings designed for conveying fluids under pressure with threaded and cold chemical solvent weld jointing systems (solvent welding) using suitable solvent cement (TemperGLUE WELD-ON) and cleaner-primer.
| Objednací číslo | product.detail.attribute.d x R | product.detail.attribute.PN | product.detail.attribute.E | product.detail.attribute.E[5:1] | L | L | Z | product.detail.attribute.Z[5:1] | product.detail.attribute.g |
|---|---|---|---|---|---|---|---|---|---|
| GIMC016038 | 16 x 3/8" | 16 | 23,5 | 24,5 | 14 | 11,4 | 10 | 13 | 22 |
| GIMC020012 | 20 x 1/2" | 16 | 28,5 | 29,5 | 16 | 15 | 12 | 13 | 33 |
| GIMC025034 | 25 x 3/4" | 16 | 35 | 36 | 19 | 16,3 | 14 | 17 | 53 |
| GIMC032100 | 32 x 1" | 16 | 43 | 44 | 22 | 19,1 | 18 | 20,5 | 94 |
| GIMC040114 | 40 x 1"1/4 | 16 | 50 | 51 | 26 | 21,4 | 22 | 27 | 104 |
| GIMC050112 | 50 x 1"1/2 | 16 | 61 | 62 | 31 | 21,4 | 27 | 37 | 203 |
| GIMC063200 | 63 x "2 | 16 | 76 | 77 | 38 | 25,7 | 33 | 46 | 380 |
