GIC

SOLVENT WELD FITTINGS - EQUAL SOCKET

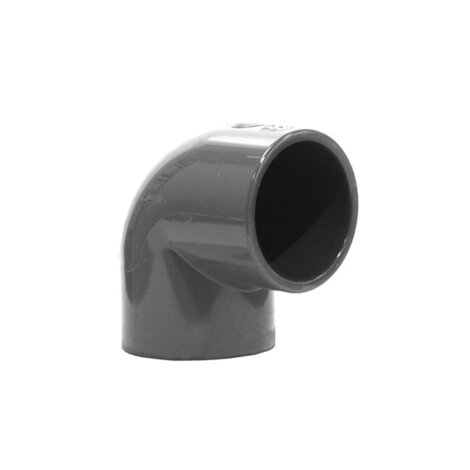

90° elbow with solvent weld sockets (fig. A)

Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement (TemperGLUE WELD-ON) and cleaner-primer.

Zpět Produktový list

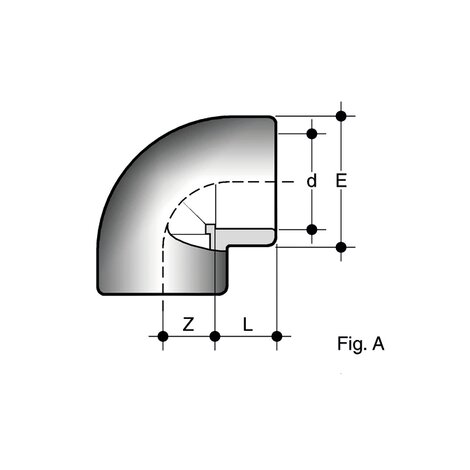

Disegno tecnico del raccordo per incollaggio GIV (Fig. A)

Disegno tecnico del raccordo per incollaggio GIV (Fig. A)

Objednací číslo	d	PN	E	L	Z	g
GIC016	16	16	22	14	9	12
GIC020	20	16	27	16	11,5	20
GIC025	25	16	33	19	14	34
GIC032	32	16	41	22	16,5	56
GIC040	40	16	50	26	22,5	95
GIC050	50	16	61	31	27	155
GIC063	63	16	76	38	33,5	283
GIC075	75	16	91	44	40,3	490
GIC090	90	16	107	51	48	745
GIC110	110	16	130	61	60	1265
GIC160	160	16	194	87	93	4450
