FKOM/FM - Butterfly valve

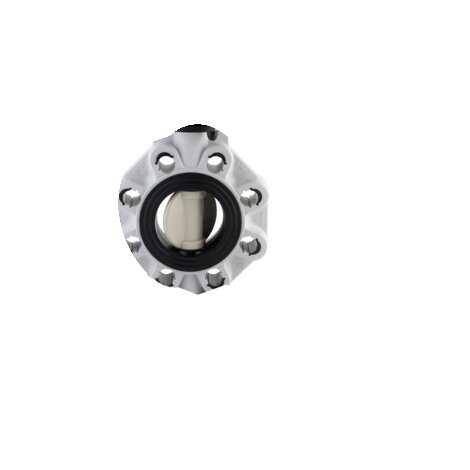

Butterfly valve with bare shaft
The FK is a butterfly valve for shutting off or regulating flow, with structural characteristics that make it ideal for industrial applications requiring high performance and longterm reliability. This$valve is also equipped with the customisable Labelling System.

Další charakteristika:

  • Ergonomic handle in HIPVC equipped with locking and unlocking device, release, quick operation and graduated adjustment in 10 intermediate positions (DN 40÷200). The operating range, starting from the first few degrees of valve opening, also guarantees extremely low pressure drops.
  • Customisable Labelling System: integrated module in the handle, made of a transparent protection plug and a customisable tag holder using the LSE set (available as an accessory). The customisation lets you identify the valve on the system according to specific needs.
  • STAINLESS steel square section stem completely isolated from the fluid complying with standard ISO 5211: DN 40÷65: 11 mm DN 80÷100: 14 mm DN 125÷150: 17 mm DN 200: 22 mm DN 250÷400: 27 mm
  • Body in polypropylene based compound reinforced with fibreglass (PP-GR) resistant to UV rays and characterised by high mechanical strength.
  • Drilling pattern using oval slots that allow coupling to flanges according to numerous international standards. The special self-centring inserts in ABS supplied for DN 40÷200 guarantee the correct axial alignment of the valve during installation. For DN 250÷400 valves, the drilling pattern for the selfcentring system is of the traditional type according to DIN and ANSI standards.
  • Interchangeable liner with the dual function of forming a hydraulic seal and isolating the body from the fluid.
Zpět Produktový list

EPDM

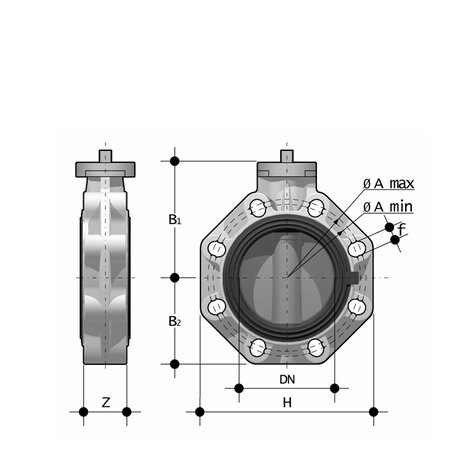

Objednací číslo product.detail.attribute.d - Size DN product.detail.attribute.PN product.detail.attribute.A min product.detail.attribute.A max product.detail.attribute.øA product.detail.attribute.B[5:1] product.detail.attribute.B[5:2] product.detail.attribute.f product.detail.attribute.H product.detail.attribute.U Z product.detail.attribute.g
FKOMFM050E 50 - 1"1/2 40 10 99 109 - 106 60 19 132 4 33 474
FKOMFM063E 63 - 2" 50 10 115 126 - 112 70 19 147 4 43 654
FKOMFM075E 75 - 2"1/2 65 10 128 144 - 119 80 19 165 4 46 900
FKOMFM090E 90 - 3" 80 10 145 160 - 133 93 19 185 12 49 1300
FKOMFM110E 110 - 4" 100 10 165 190 - 147 107 19 211 8 56 1650
FKOMFM140E 125/140 - 5" 125 10 204 215 - 167 120 23 240 8 64 2450
FKOMFM160E 160*/180 - 6" 150 10 230 242 - 180 134 23 268 8 70 3200
FKOMFM225E 200*/225* - 8" 200 10 280 298 - 227 161 23 323 8 71 5900
FKOMFM280E 250*/280* **250 10 - - 350 248 210 22 405 12 114 11800
FKOMFM315E 315* **300 8 - - 400 305 245 22 475 12 114 18700
FKOMFM355E 355* **350 7 - - 460 330 280 22 530 16 129 23315
FKOMFM400E 400* **400 6 - - 515 350 306 26 594 16 169 30310
FKOAMFM810E 10" ***250 10 - - 362 248 210 25,4 405 12 114 11800
FKOAMFM812E 12" ***300 8 - - 432 305 245 25,4 475 12 114 18700
FKOAMFM814E 14" ***350 7 - - 476 330 280 28,5 530 12 129 23315
FKOAMFM816E 16" ***400 6 - - 540 350 306 28,5 594 16 169 30310

FKM

Objednací číslo product.detail.attribute.d - Size DN product.detail.attribute.PN product.detail.attribute.A min product.detail.attribute.A max product.detail.attribute.øA product.detail.attribute.B[5:1] product.detail.attribute.B[5:2] product.detail.attribute.f product.detail.attribute.H product.detail.attribute.U Z product.detail.attribute.g
FKOMFM050F 50 - 1"1/2 40 10 99 109 - 106 60 19 132 4 33 474
FKOMFM063F 63 - 2" 50 10 115 126 - 112 70 19 147 4 43 654
FKOMFM075F 75 - 2"1/2 65 10 128 144 - 119 80 19 165 4 46 900
FKOMFM090F 90 - 3" 80 10 145 160 - 133 93 19 185 12 49 1300
FKOMFM110F 110 - 4" 100 10 165 190 - 147 107 19 211 8 56 1650
FKOMFM140F 125/140 - 5" 125 10 204 215 - 167 120 23 240 8 64 2450
FKOMFM160F 160*/180 - 6" 150 10 230 242 - 180 134 23 268 8 70 3200
FKOMFM225F 200*/225* - 8" 200 10 280 298 - 227 161 23 323 8 71 5900
FKOMFM280F 250*/280* **250 10 - - 350 248 210 22 405 12 114 11800
FKOMFM315F 315* **300 8 - - 400 305 245 22 475 12 114 18700
FKOMFM355F 355* **350 7 - - 460 330 280 22 530 16 129 23315
FKOMFM400F 400* **400 6 - - 515 350 306 26 594 16 169 30310
FKOAMFM810F 10" ***250 10 - - 362 248 210 25,4 405 12 114 11800
FKOAMFM812F 12" ***300 8 - - 432 305 245 25,4 475 12 114 18700
FKOAMFM814F 14" ***350 7 - - 476 330 280 28,5 530 12 129 23315
FKOAMFM816F 16" ***400 6 - - 540 350 306 28,5 594 16 169 30310
  • Interchangeable Disk in PP-H with through shaft, available in different thermoplastic materials: PVC-U, PVC-C, ABS, PVDF Overall dimensions of the valve in accordance with standard ISO 5752 (DN 40÷200 Medium series 25, DN 250÷ 300 Long Series 16) and DIN 3202 K2 and ISO 5752 (DN DN 65÷200 K2, DN 250÷300 K3) Can also be installed as an end line valve, bottom discharge valve or tank dump valve Special Lug version PN 10 fully drilled according to DIN 2501 or ANSI B16.5 cl.150 with molded-in AISI 316 stainless steel threaded inserts Valve material compatibility (PP-H) with water conveyance, drinking water and other food substances according to current regulations Possibility of installing a manual reducer or pneumatic and/or electric actuators by applying an ISO standard drilling PP-GR flanges. DN 40 ÷ 200 valve equipped with plate with rack in PP-GR. For actuated versions with flange drilled according to ISO 5211 F05, F07, F10. DN 250÷300 valve, fitted with one-piece top flange in high mechanical strength PP-GR with mounting flange for internal components drilled according to standard ISO 5211 F10 (excluding DN 350÷400), F12, F14. Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
