F/BIC
SOLVENT WELD FITTINGS - UNIONS

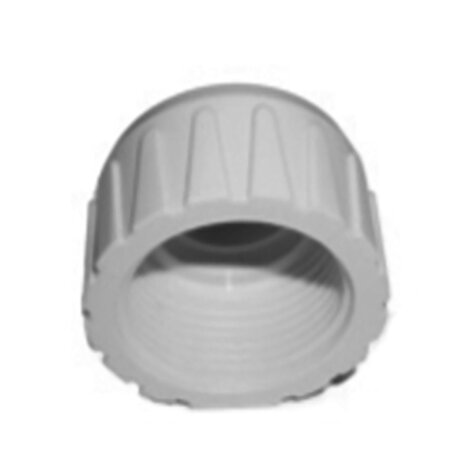

Union bush for solvent welding, metric series
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement (TemperGLUE WELD-ON) and cleaner-primer.
| Objednací číslo | product.detail.attribute.d | product.detail.attribute.R[5:1] | product.detail.attribute.PN | L | Z | product.detail.attribute.g |
|---|---|---|---|---|---|---|
| FBIC016 | 16 | 3/4" | 16 | 14 | 10 | 9 |
| FBIC020 | 20 | 1" | 16 | 16 | 10 | 13 |
| FBIC025 | 25 | 1"1/4 | 16 | 19 | 10 | 25 |
| FBIC032 | 32 | 1"1/2 | 16 | 22 | 10 | 31 |
| FBIC040 | 40 | 2" | 16 | 26 | 12 | 58 |
| FBIC050 | 50 | 2"1/4 | 16 | 31 | 14 | 63 |
| FBIC063 | 63 | 2"3/4 | 16 | 38 | 19 | 119 |
